Looking for Db15 M2? DB15-M2 DB15 to Terminal With Nut is available at Zbotic with fast shipping across India.
DB15-M2 DB15 to Terminal Without Nut
The DB15-M2 DB15 to Terminal with Nut Adapter is an essential tool for communication debugging, providing convenient connectivity for 15 signal lines with clearly labeled names and numbers. Featuring a terminal spacing of 3mm and screw hole diameter of 2.5mm, assembly requires a 2.5mm screwdriver, ensuring secure attachment. The terminals accept wire sizes ranging from 24 to 12AWG and can handle a maximum current of 10A. Constructed with environmentally friendly copper terminals and equipped with a 3mm thick insulated pad at the bottom, this product ensures reliable performance and durability.DB15 Female Adapter Plate Signal Module, RS232 Serial DB15 15-pin to 2 Row Screw Terminal Block. Connector, Screw Type. Female PCB Mount Socket Connector, it serves as a versatile solution for various connectivity needs, including PCB mounting, breakout boards, and cable connections.
Db15 M2 – Features:
- Material :Copper, Metal, Plastic.
- Color: Green and Black.
- Connect Type: Screw Nut.
- The terminals can accept 24-12AWG wire and max 10A current.
Feature/Specification:
- Connector Type: DB15 To Terminal With Nut
- Material: Copper, Metal, Plastic
- Length: 60 mm
- Width: 40 mm
- Height: 15 mm
Application:
- Serial data transmission.
- Data networks.
- Instrument control.
- Device management.
- DIY projects requiring 15 pins inter-device connectivity
PACKAGE INCLUDES
- 1 X DB15-M2 DB15 to Terminal with Nuts.
DB15-M2 DB15 to Terminal With Nut Overview

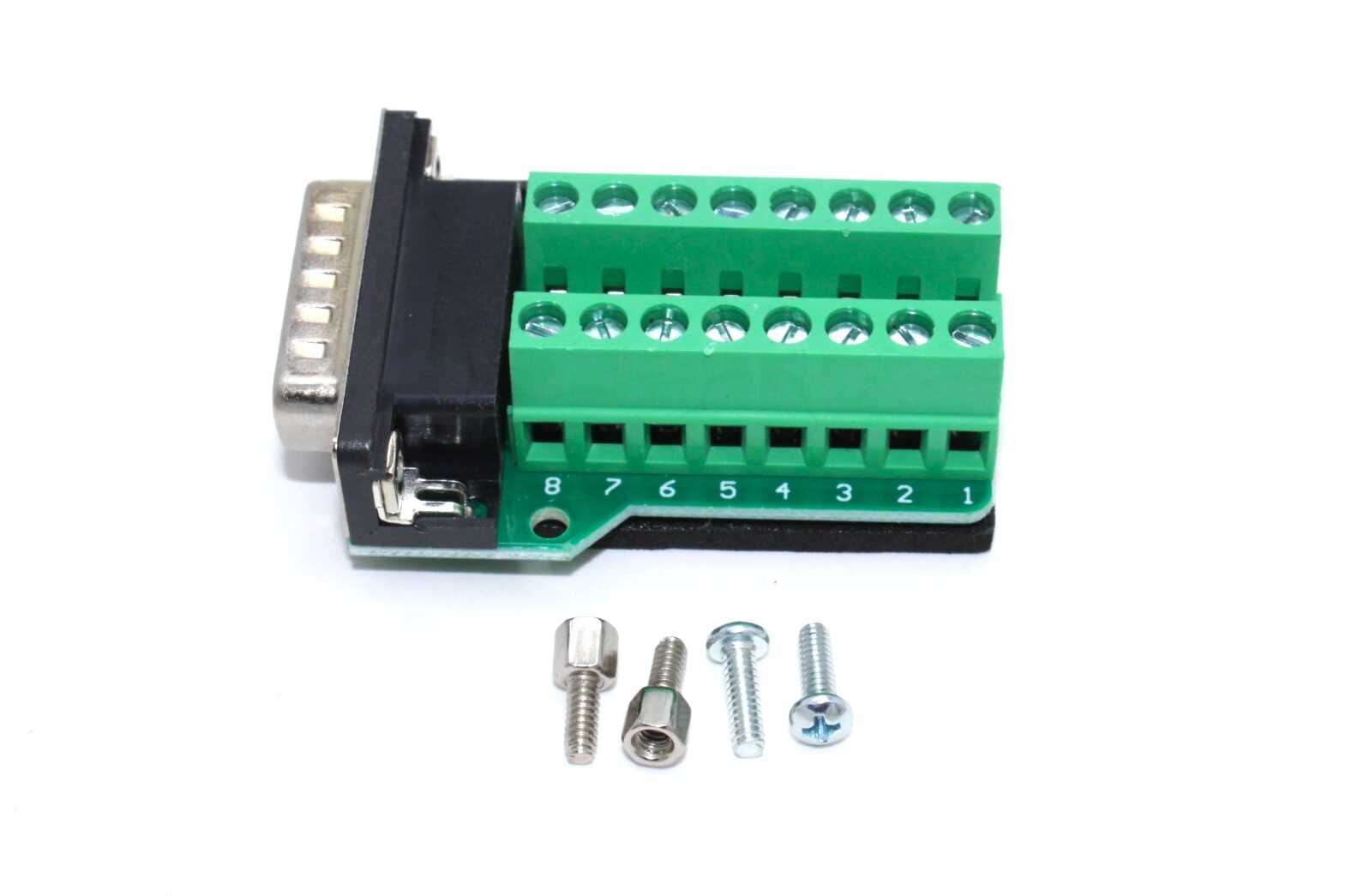

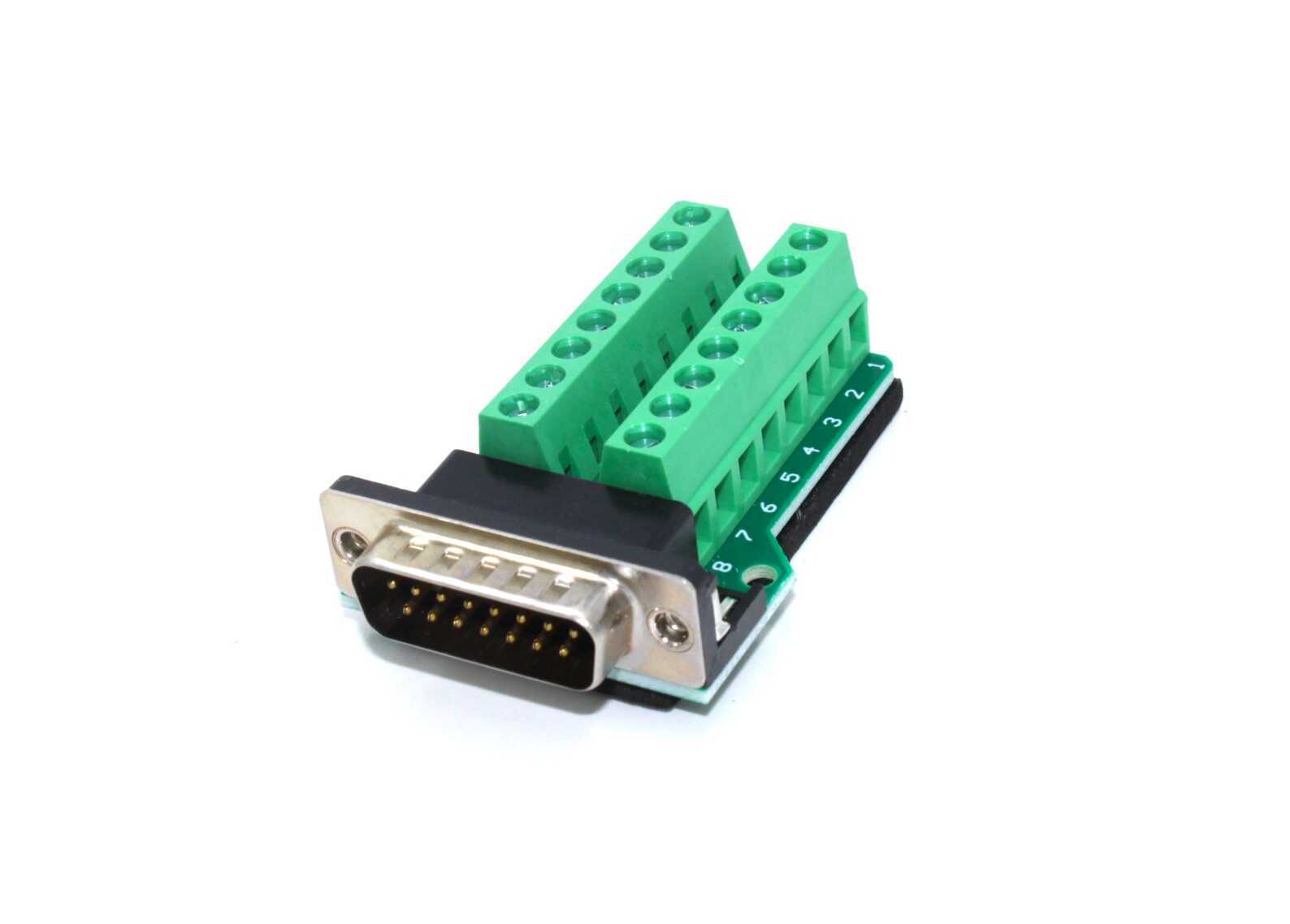

The DB15-M2 DB15 to Terminal With Nut is a screw-on adapter that converts a standard DB15 connector into 15 secure screw terminals with individual labeling. It’s designed for communication debugging and prototyping in RS232/RS485 setups, offering clear screw-type connections for wires ranging from 24 AWG to 12 AWG.
Key Features of DB15-M2 DB15 to Terminal With Nut
- Compatibility: Standard DB15 female interface for seamless integration with serial ports and extension cables
- Screw Nut Connectivity: Secure screw terminals accept 24–12 AWG wires and handle up to 10 A current

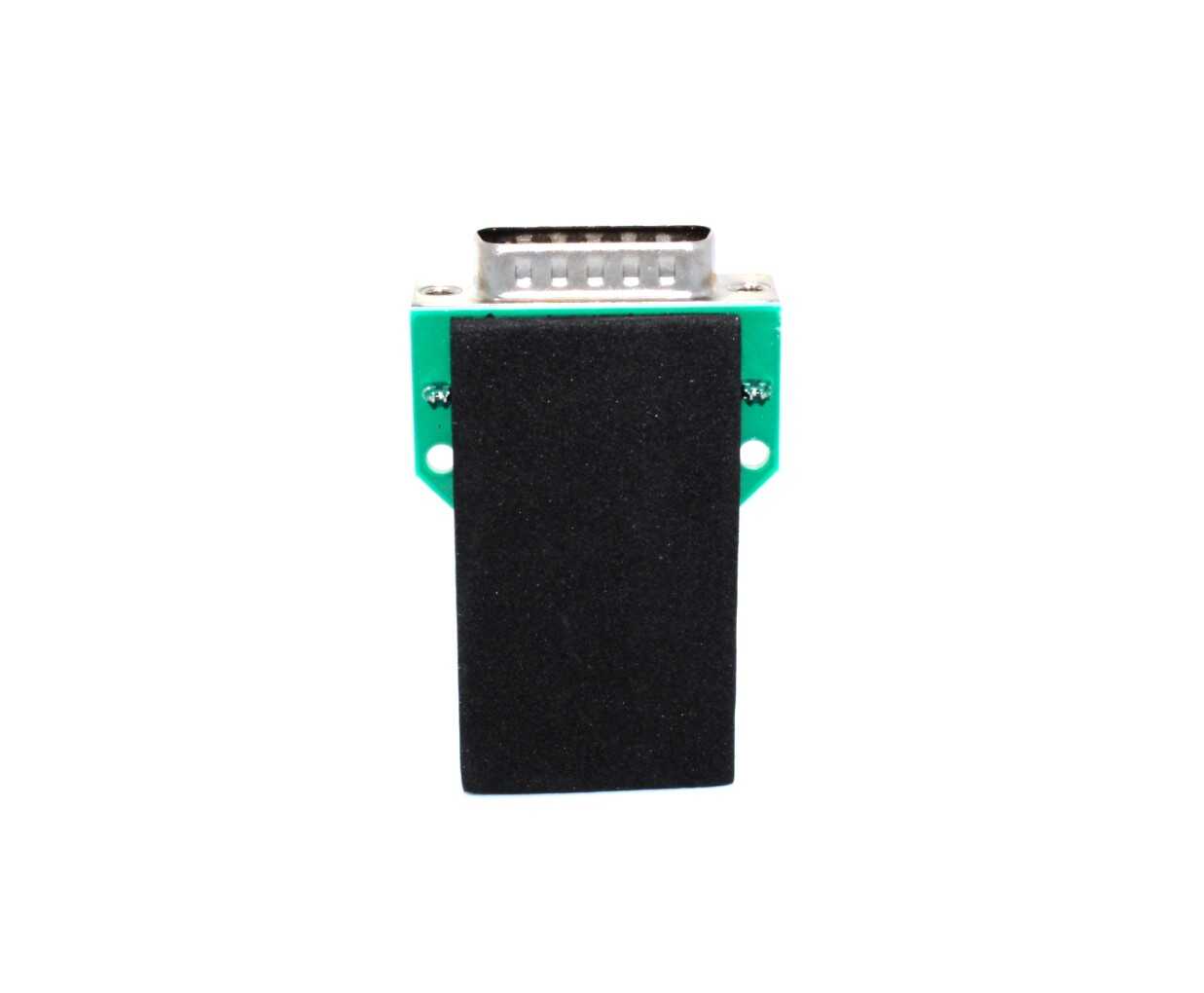

- Durable Construction: Copper terminals mounted on a 3 mm thick insulated pad within a metal/plastic housing
- Precise Design: 3 mm terminal spacing and 2.5 mm screw hole diameter for reliable assembly
- Clear Labeling: Each of the 15 signal lines is marked with names and numbers for error-free wiring
- Fast Shipping from Zbotic: Ships within 24 hours across India with tracking
Applications and Use Cases
- Serial communication debugging in industrial control systems
- Prototyping custom RS232/RS485 interfaces in electronics labs
- Field servicing of CNC machines, PLCs, and instrumentation panels
- Connecting sensors and actuators in robotics and automation setups
- Telemetry and data acquisition requiring quick connector swaps
How to Use DB15-M2 DB15 to Terminal With Nut
Align the adapter onto your DB15 male connector and secure it by tightening the nut with a 2.5 mm screwdriver. Strip each wire (24–12 AWG), insert it into the corresponding terminal, and tighten the screws. Verify the terminal labels match your wiring diagram before powering the system.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What wire gauge can I use with the DB15-M2 adapter?
The terminals accept wire sizes from 24 AWG up to 12 AWG and support currents up to 10 A, suitable for most serial signals and low-voltage power lines.
How do I secure the adapter to my DB15 connector?
Place the adapter over the DB15 male port and tighten the included nut on the screw posts with a 2.5 mm screwdriver to ensure a firm, vibration-resistant connection.
Are the terminals labeled for easy wiring?
Yes, each of the 15 terminals is clearly marked with its signal number and name, minimizing wiring errors during installation.
Technical Specifications
| Model | DB15-M2 |
|---|---|
| SKU | AI6017 |
| Weight | 0.07085 kg |
| Availability | Out of Stock |
Applications & Use Cases
The DB15-M2 DB15 to Terminal With Nut is a versatile interface connector used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
