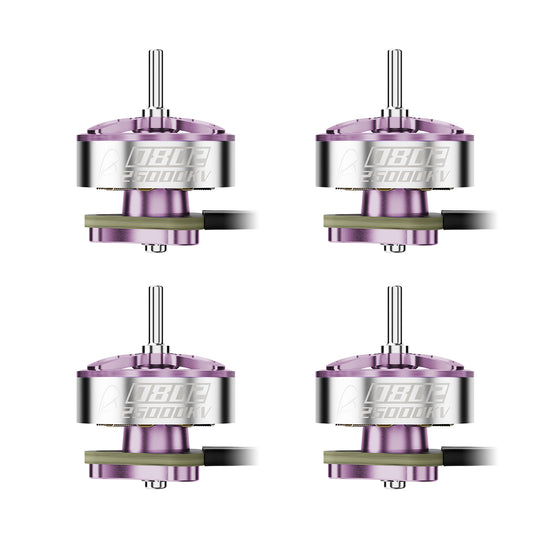

BETAFPV 0802 Brushless Motors (2026) – 4PCS
Description:
The 0802 Brushless Motors (2026) feature a revolutionary 0.10mm stator core for more efficient flight and extended power. Available in three precision-tuned versions for Air75 II—Champion (28000KV), Racing (25000KV), and Freestyle (22000KV)—each is optimized with specific magnetic and winding designs. Built with upgraded materials for crash resilience, this is the definitive motor for pilots who accept no compromise.
Bullet Points
- Industry-First 0.10mm Stator Core: Maximizes efficiency and reduces heat by minimizing magnetic losses, delivering a proven 0.1-0.2g/W improvement.
- Three Precision-Tuned Versions: Tailored for the Air75 II whoop with unique KV ratings and designs.
- Champion (28000KV): Combines maximum power and responsiveness with durable dual-ball bearings for professional racing.
- Racing (25000KV): Engineered for high RPM and instant response on technical race courses.
- Freestyle (22000KV): Optimized for smooth, efficient flying with superior low-throttle torque.
- Enhanced Crash Durability: Built with an upgraded rotor housing and shaft design to withstand hard impacts and extend motor life.
Specifications :
| Specification | Details |
|---|---|
| Motor Model | 0802 Racing |
| KV Rating | 25000KV |
| Maximum Power | 31.15W |
| Maximum Current | 8.15A |
| Bearing Type | Brass Bushings |

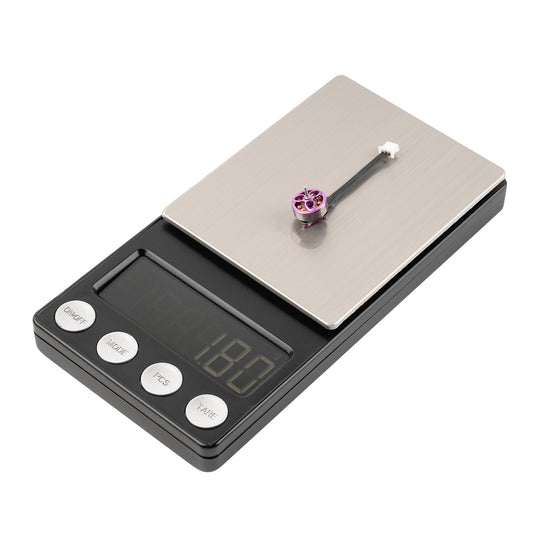

| Weight | 1.88g |
| Rated Voltage | 4.2V (1S) |
| Shaft Diameter | 1.0mm |
| Shaft Length | 4.0mm |
| Wire Gauge | 30AWG |
| Wire Length | 35mm |
| Connector | JST1.25 3-pin |
| Mounting Hole Size | 3 × M1.4, Ø6.6mm pattern |
| Package Quantity | 4PCS |
Dimensions :
Industry-First 0.10mm Stator Core
BETAFPV pioneers a breakthrough in efficiency with the industry’s first 0.10mm stator core.
This ultra-thin design minimizes magnetic losses, dramatically improving energy conversion and reducing heat generation. Proven in testing, 0802 Brushless Motors (2026) deliver a significant efficiency gain of 0.1-0.2g/W compared to 0802 motors with a 0.15mm core.
Champion/Racing/Freestyle, Precision-Tuned
Designed exclusively for the Air75 II whoop, three distinct versions are precision-engineered to meet specific performance demands. Each features unique KV ratings, magnetic circuit designs, and winding processes for optimized power delivery. The Freestyle (22000KV) prioritizes smooth control with superior low-throttle torque for fluid, cinematic flying. The Racing (25000KV) delivers higher RPMs and razor-sharp response for agility on technical race courses. At the pinnacle, the Champion (28000KV) combines maximum power and instant throttle response with durable dual-ball bearings, engineered for dominant, professional-grade racing.
Enhanced Crash Durability
Engineered for resilience, the 0802 Brushless Motors (2026) feature an upgraded rotor housing material and a reinforced shaft design. This construction is built to withstand harder impacts during flight, significantly reducing the likelihood of damage from crashes.
Load performance of the 0802 Brushless Motors (2026):
Package
- 4 * 0802 Brushless Motors (2026) | Champion/Racing/Freestyle
- 12 * M1.4*3 screws
DC Motor Back-EMF Protection: Flyback Diode Circuit Guide
Every DC motor project has a hidden danger that can silently destroy transistors, microcontrollers, and motor driver ICs:...
Read More →
Drone Payload Systems: How to Add a Camera Gimbal
Drone Payload Systems: How to Add a Camera Gimbal to Your Drone A camera gimbal transforms your drone...
Read More →
Stepper Motor Wiring: 4-Wire, 6-Wire & 8-Wire Types Explained
Stepper motors are the backbone of precision motion control in 3D printers, CNC machines, robotic arms, and DIY...
Read More →Technical Specifications
| Brand | BETAFPV |
|---|---|
| Package Quantity | 4 pcs |
| SKU | AI5127 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The BETAFPV 0802 Brushless Motors (2026) – 4PCS is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
