Product Description

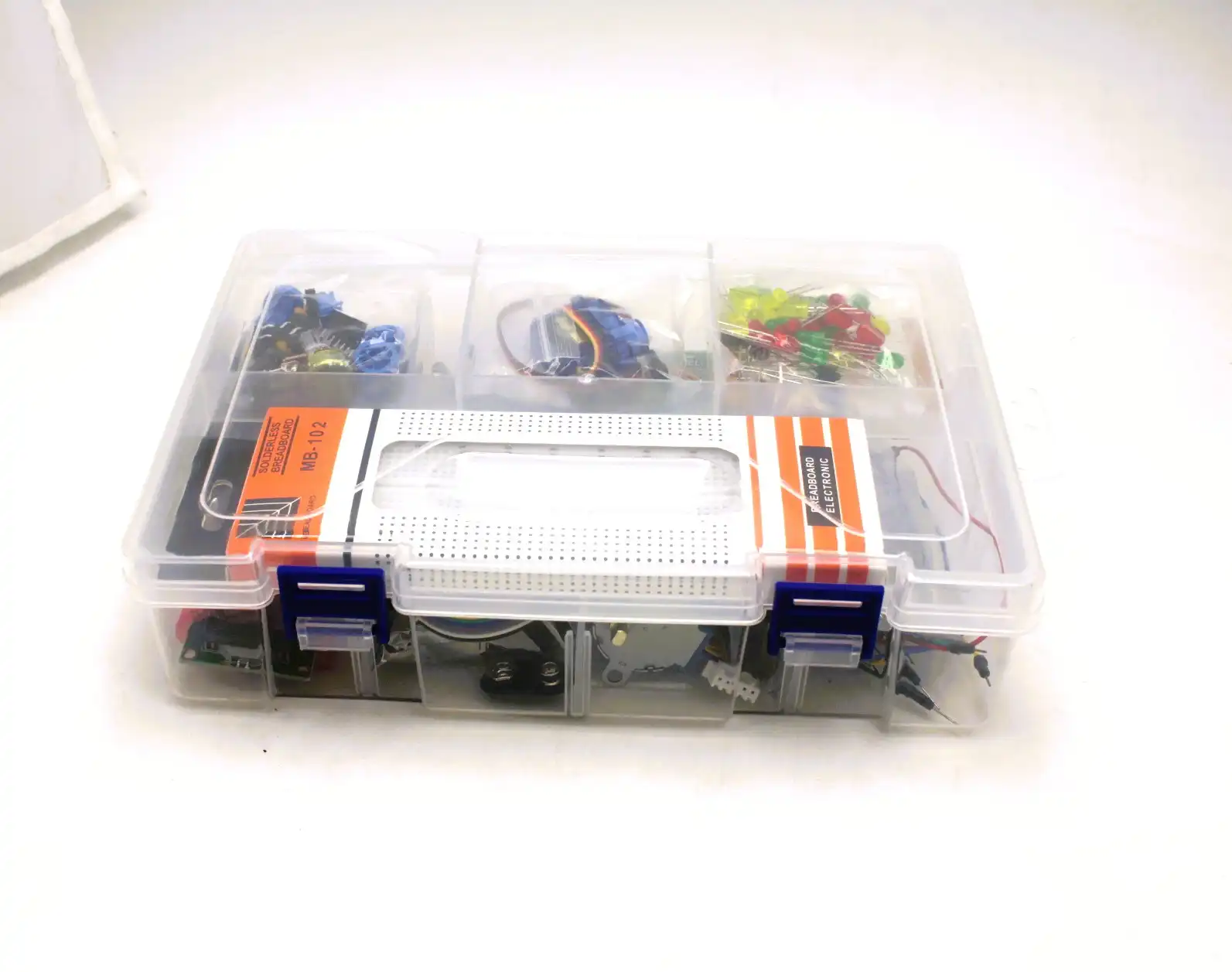

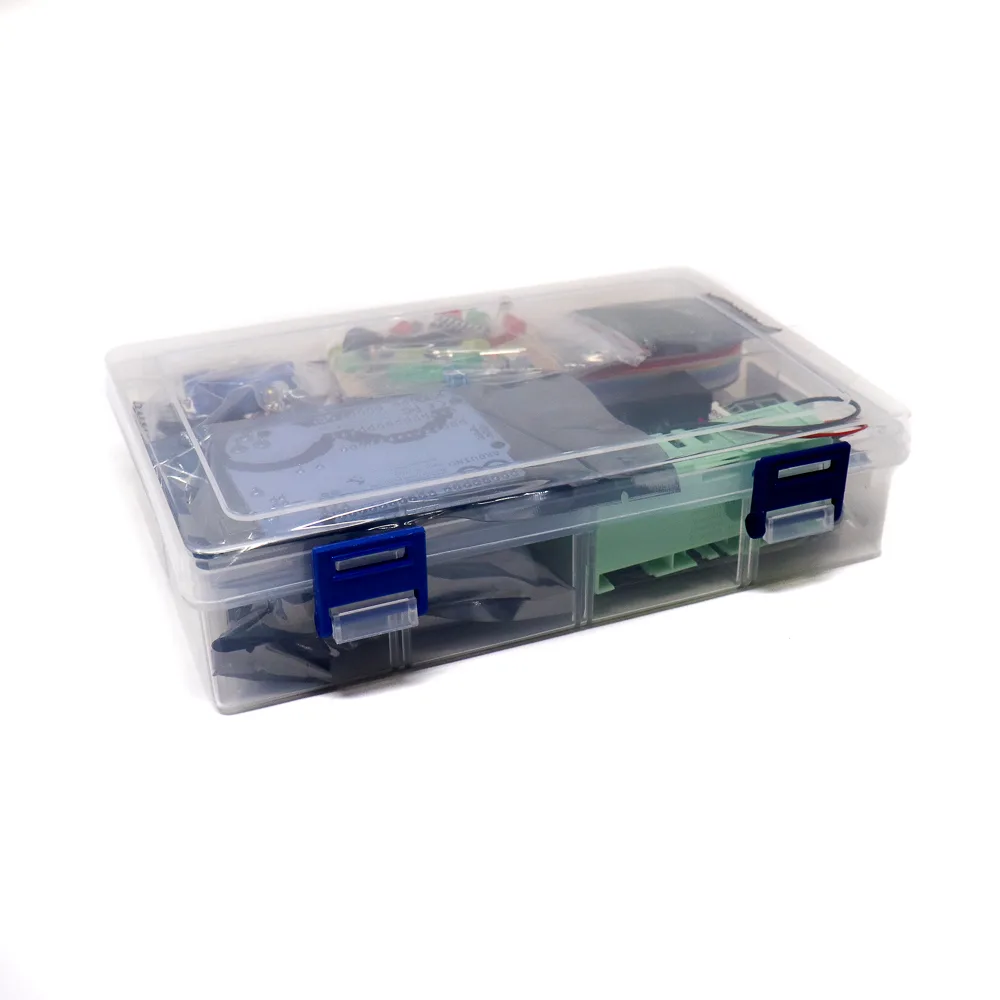

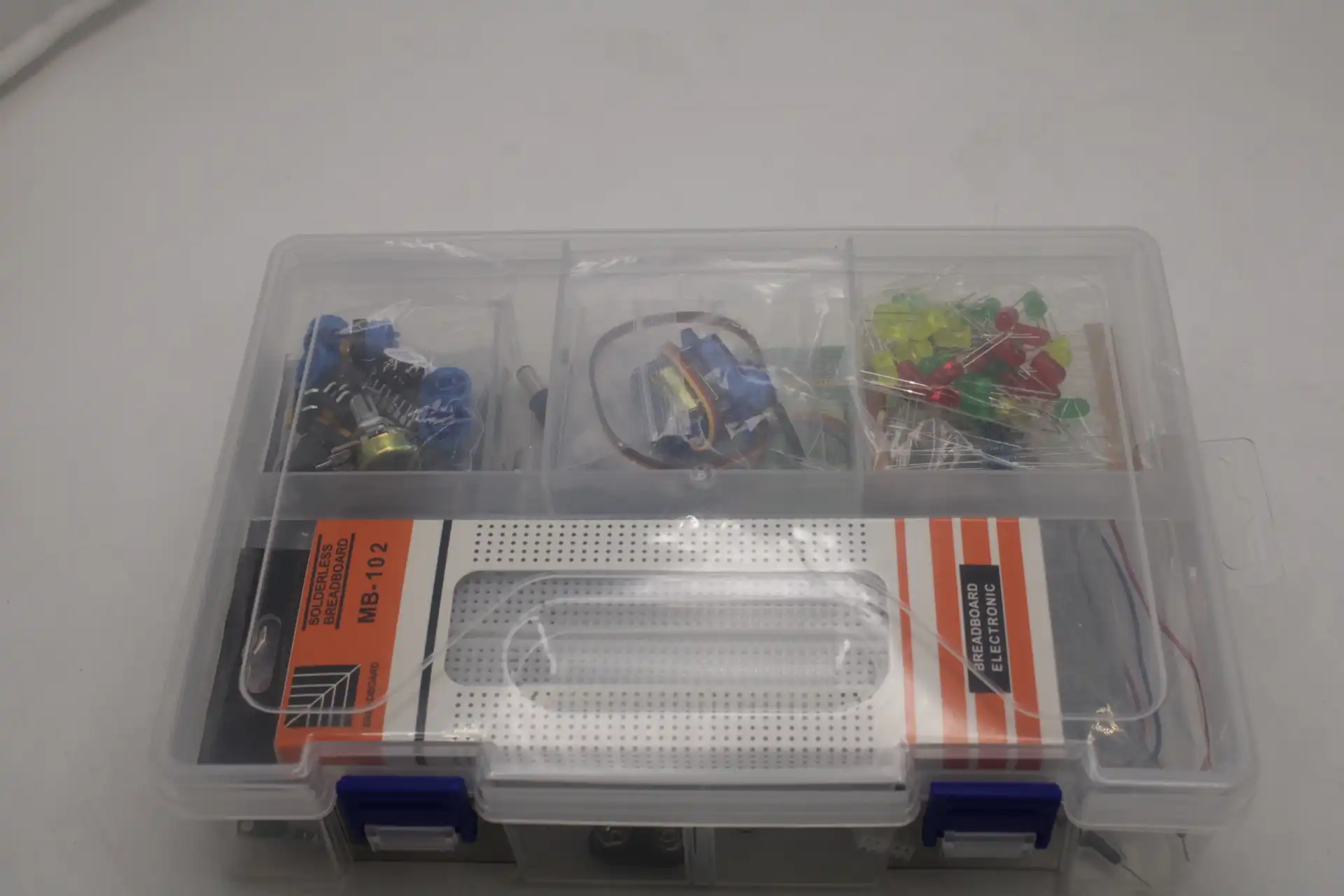

The Arduino Uno R3 Beginner’s Kit is perfect for those just starting out with electronics and programming. It includes all the necessary components to build 15 unique projects, ranging from simple tasks like a blinking LED to more advanced projects like an RGB light dimmer.
One of the standout features of this kit is that every component is clearly labeled, making it incredibly user-friendly—especially for beginners. This often-overlooked detail helps you keep track of each piece and simplifies the learning process.
Additionally, the kit provides extra components such as LEDs, jumper wires, and resistors, which are always useful to have on hand. Whether you’re a beginner or someone looking to hone your skills, this kit gives you a hands-on introduction to Arduino programming and provides a solid foundation for exploring the world of electronics. You’ll gain a clear understanding of what Arduino is and how it can be used in a wide range of projects.
FeaturesÂ
- All-in-one kit, a great starter kit for learning to code.
- Great for Starting with Arduino Programming
- A variety of components are included in this pack to try out different projects.
- UNO Specs:
- Model Type: UNO Rev R3
- Microcontroller Chip: ATmega328
- Input Voltage(Recommended): 7-12V
- Input Voltage (limit): 6-20V
- Operating Voltage: 5
- Analog I/O Pins: 6
- Digital I/O Pins: 14 (of which 6 provide PWM output)
- PWM Digital I/O Pins: 6
- DC Current per I/O Pin: DC Current per I/O Pin: 40 mA; DC Current for 3.3V Pin: 50 mA
- Clock Speed: 16 MHz
- EEPROM: 1 KB (ATmega328)
- Flash Memory: 32 KB (ATmega328) of which 0.5 KB used by bootloader
- PWM Output Pins: 6
- SRAM: 2 KB (ATmega328)
- Power Supply Option: DC Jack or USB
- On-Board LEDs: Yes
- Operating Temperature (°C): -40 to +90

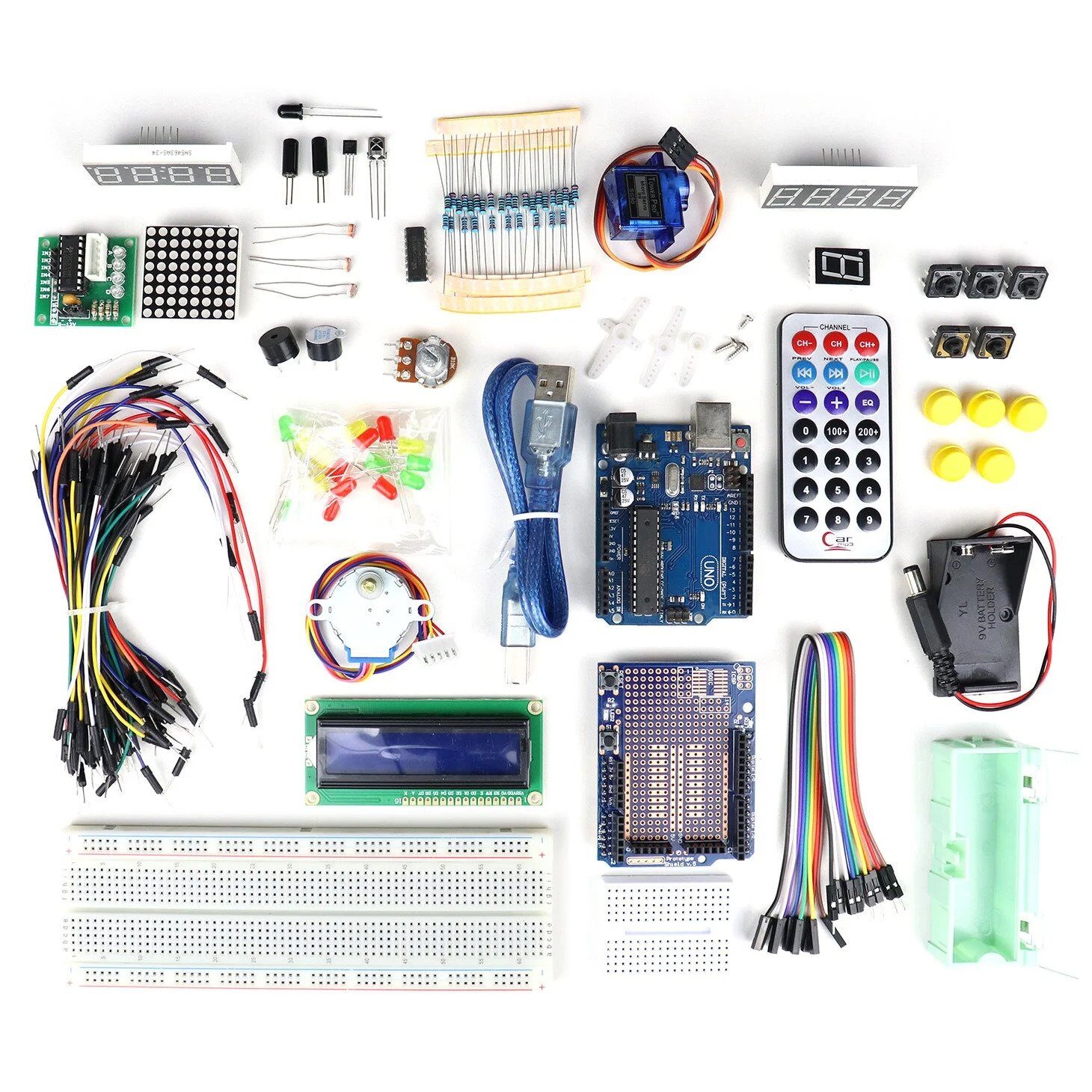

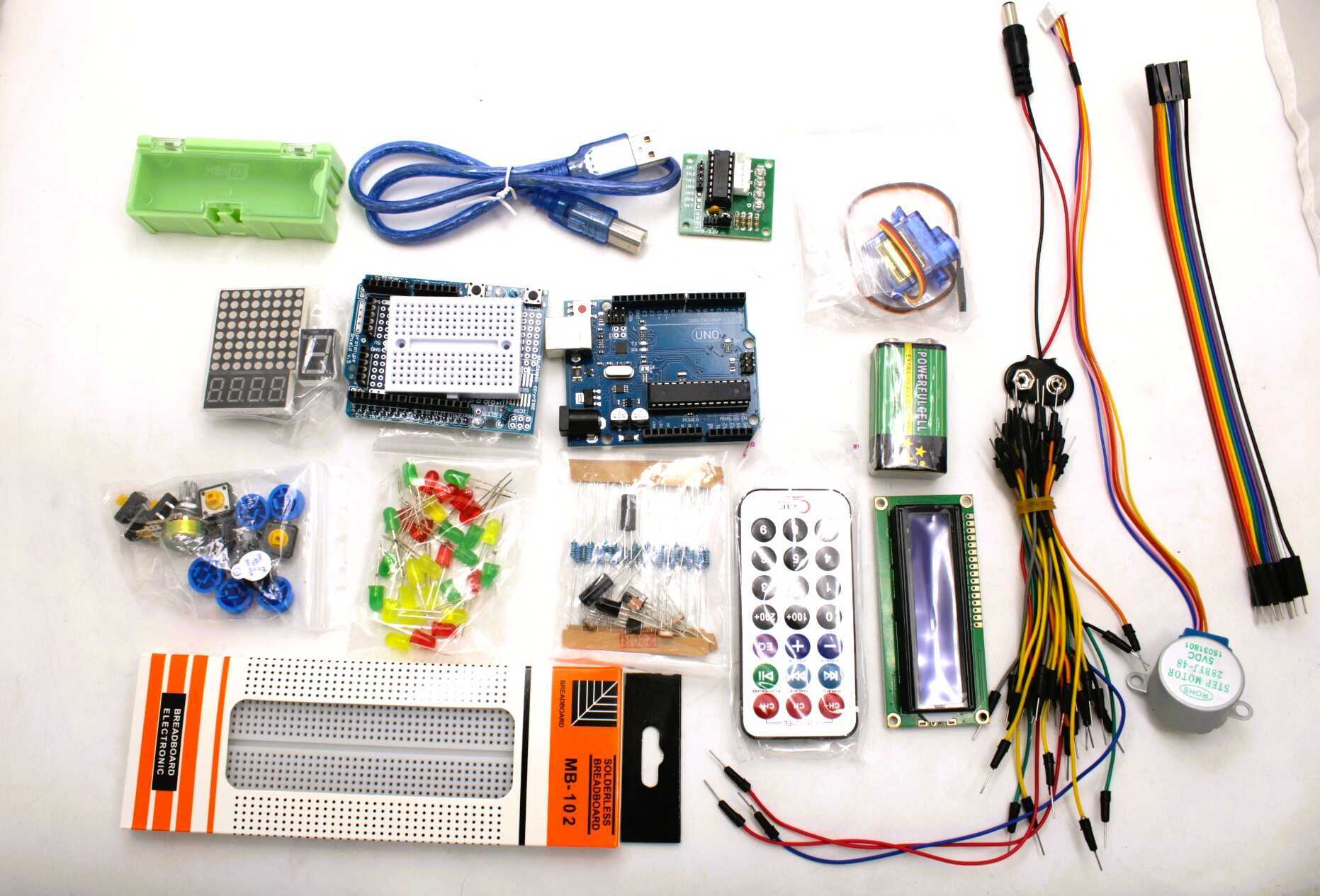

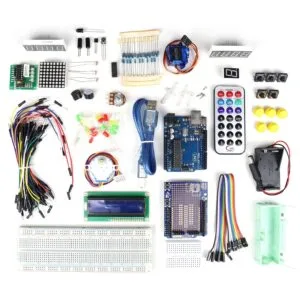

Package IncludesÂ
- 1 x UNO R3.
- 1 x High-Quality Retail Box.
- 1x USB cable.
- 1 x Jumper Wires.
- 1 x 830 Point BREADBOARD.
- 15 x LED (Red, Green, Yellow).
- 30 x Resistance(220R, 10K, 1K).
- 1 x Potentiometer.
- 1x Active Buzzer.
- 1 x Passive Buzzer.
- 1 x 74HC595N.
- 1x Infrared Receiving Head.
- 1 x LM35DZ.
- 3 x 5mm LDR.
- 5 x Button Switch With Cap.
- 1 x IR Remote Control.
- 1 x One Digital Tube.
- 1x Four Digital Tube.
- 1 x 8*8 Dot Matrix Tube.
- 1 x UNL2003 Driver Board.
- 1x 5V Stepper Motor.
- 1 x SG90 Servo Motor.
- 1 x LCD1602 Screen.
- 1x 9V Battery Box.
- 1 x Breadboard.
- 1 x Berg Strip
