698-960MHz And 1710-2690MHz 4G LTE Dual Band 0/1.5 dBi PCB/Sticker Antenna
This is a Dual Band 0/1.5 dBi PCB/Sticker Antenna having a frequency of 698-960MHz & 1710-2690MHz. The biggest advantage to dual-band antennas is their ability to provide a strong, stable wireless connection is often difficult to reach locations. For this reason, they are often used in devices such as cellular or dual-band wireless access points.

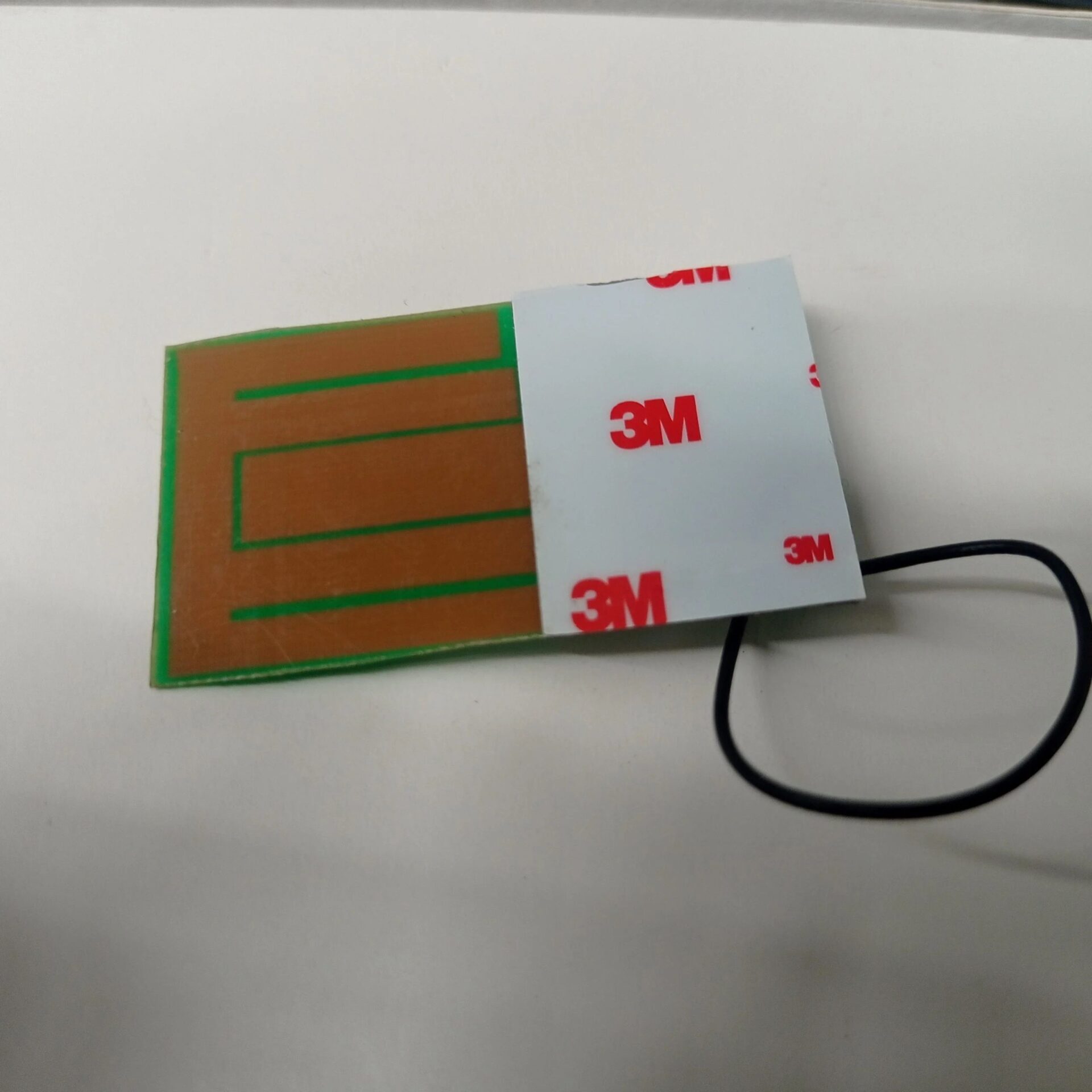

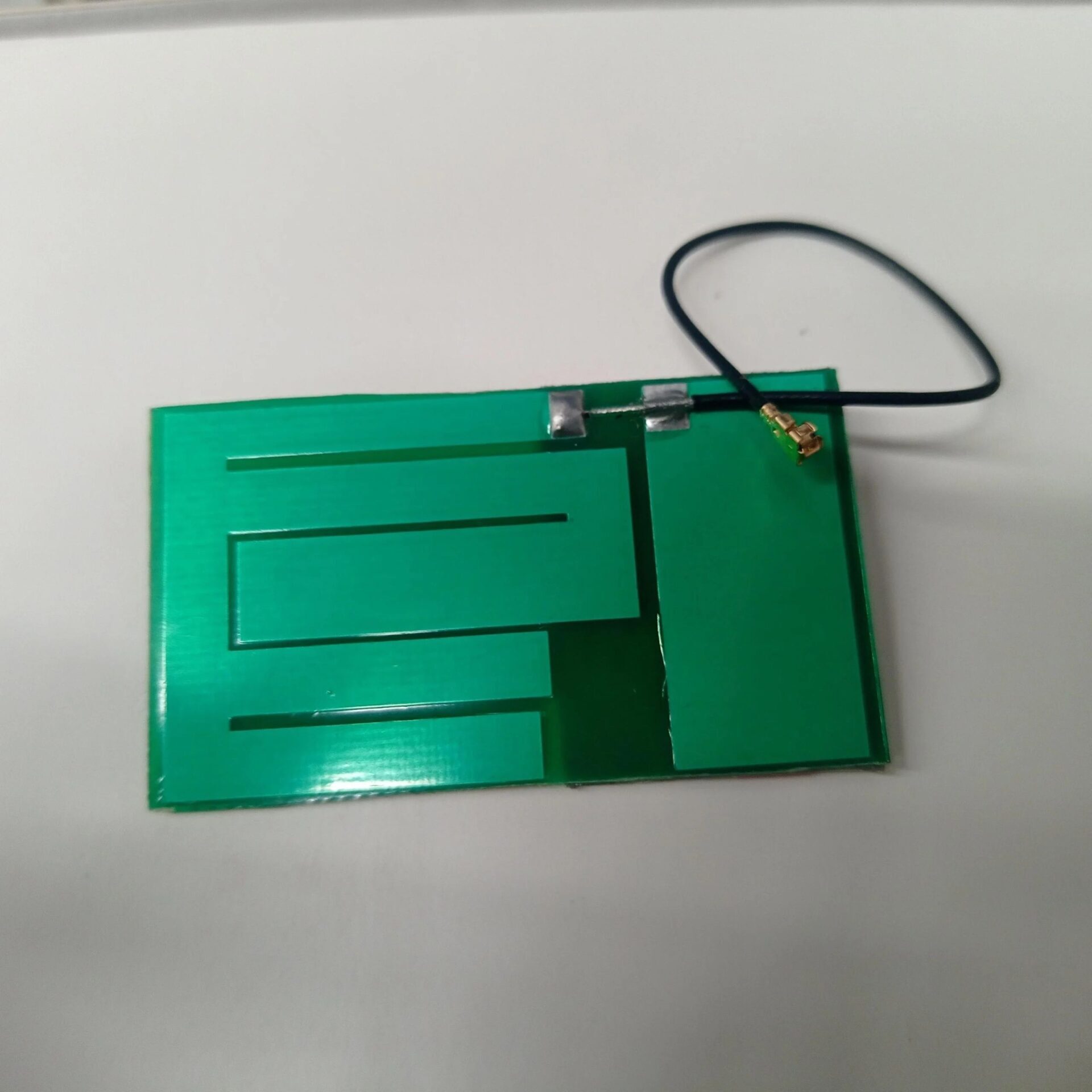

Note: PCB layout may vary from the image shown
Suitable for:
4G: TDD-LTE (4G) FDD-LTE (4G)
3G: HSPA+, HSPA, UMTS, EVDO, WCDMA (3G) CDMA2000 (3G) TD-SCDMA (3G)
2G: EDGE, GPRS, GSM, GSM(2G) CDMA(2G)
Features:
- Compact size
- High quality
- Low cost
- Masking for corrosion-free.
Specifications:
| Item Type: | Sticker Antenna |
|---|---|
| Frequency (MHz) | 1710 to 2690, 698 to 960 |
| Gain | 1/2 dBi |
| VSWR | <2.5 |
| Impedance (Ω) | 50 |
| Polarization | Linear |
| Power Handling (W) | 5 |
| HPBW | H: 3600 ; V: 300 / 400 |
| Connector | U.FL |
| Cable | RG174 |
| Cable Length (cm) | 10 |
| Operating Temperature (°C): | -30° to 60° C |
| Humidity | 5 – 75% |
| Mounting | 3M Adhesive Tape |
| Dimension (mm) | 128 x 17 x 2 |
| Weight(g) | 5 |
| Connector Type | SMA female |
Package Includes:
1 x 698-960MHz & 1710-2690MHz Dual Band 0/1.5 dBi PCB Antenna
698-960MHz And 1710-2690MHz 4G LTE Dual Band 0/1.5 dBi Overview
This dual-band PCB/sticker antenna covers 698-960 MHz and 1710-2690 MHz frequencies, providing reliable reception for 4G LTE, 3G, and 2G networks. With its compact form factor and U.FL connector, it’s ideal for embedded cellular modules and miniaturized wireless devices.
Key Features of 698-960MHz And 1710-2690MHz 4G LTE Dual Band 0/1.5 dBi
- Frequency Range: 698-960 MHz & 1710-2690 MHz for TDD/FDD LTE, WCDMA, CDMA2000
- Gain: Approx. 0 dBi on 698-960 MHz band and 1.5 dBi on 1710-2690 MHz band
- Compact PCB/Sticker Design: Easy surface mounting or adhesive attachment
- Cable & Connector: 16 cm RG-178 cable terminated with U.FL for plug-and-play integration
- Low VSWR: <2.5 across both bands for efficient signal transmission
- Fast Shipping: Genuine stock shipped quickly from Zbotic warehouses across India
Applications and Use Cases
- 4G LTE routers and gateways for remote connectivity
- Embedded cellular modules in industrial IoT and M2M devices
- Vehicle telematics and fleet-tracking units
- Portable hotspots and mobile broadband routers
- Smart metering and telemetry systems requiring dual-band coverage
How to Use 698-960MHz And 1710-2690MHz 4G LTE Dual Band 0/1.5 dBi
Peel and stick the antenna onto a clean, flat surface or solder it onto your PCB following the layout guidelines. Connect the U.FL plug into your cellular module’s antenna port, position the cable away from metal obstructions, and secure your device for optimal signal performance.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is this antenna compatible with all LTE bands in India?
Yes, the antenna covers 698–960 MHz and 1710–2690 MHz bands, supporting major Indian LTE TDD and FDD frequencies.
Can I mount this antenna inside an enclosure?
Yes, but for best performance keep the antenna near the enclosure’s exterior and free from thick metal or carbon-fiber surfaces.
How do I test VSWR and signal strength after installation?
Use an RF analyzer or a network analyzer to measure VSWR, and check signal metrics in your cellular module’s diagnostics interface to verify improved reception.
Technical Specifications
| Interface / Protocol | 4G, LTE |
|---|---|
| Frequency | 960MHz |
| SKU | AI1079 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 698-960MHz And 1710-2690MHz 4G LTE Dual Band 0/1.5 dBi PCB/Sticker Antenna is a versatile gsm and rf antenna used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
