This is the 54mm variant of the 3 Pin JST XH 2.54mm Pitch Plug and Socket with Cable(Pack of 10) in Battery Harness. Available at ₹74.34 (₹63.00 + GST) with free shipping across India.
Looking for 2.54mm Cable? 3 Pin JST XH 2.54mm Pitch Plug and Socket with Cable(Pack of 10) is available at Zbotic with fast shipping across India.

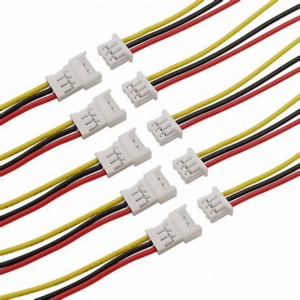

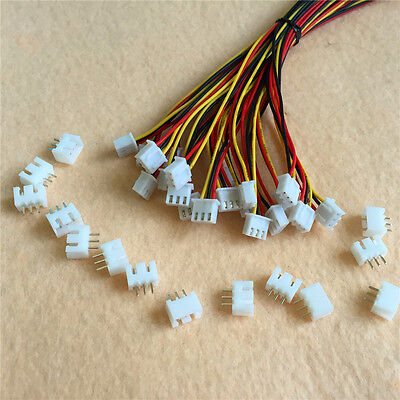

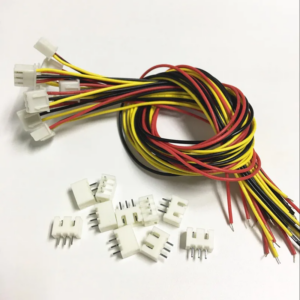

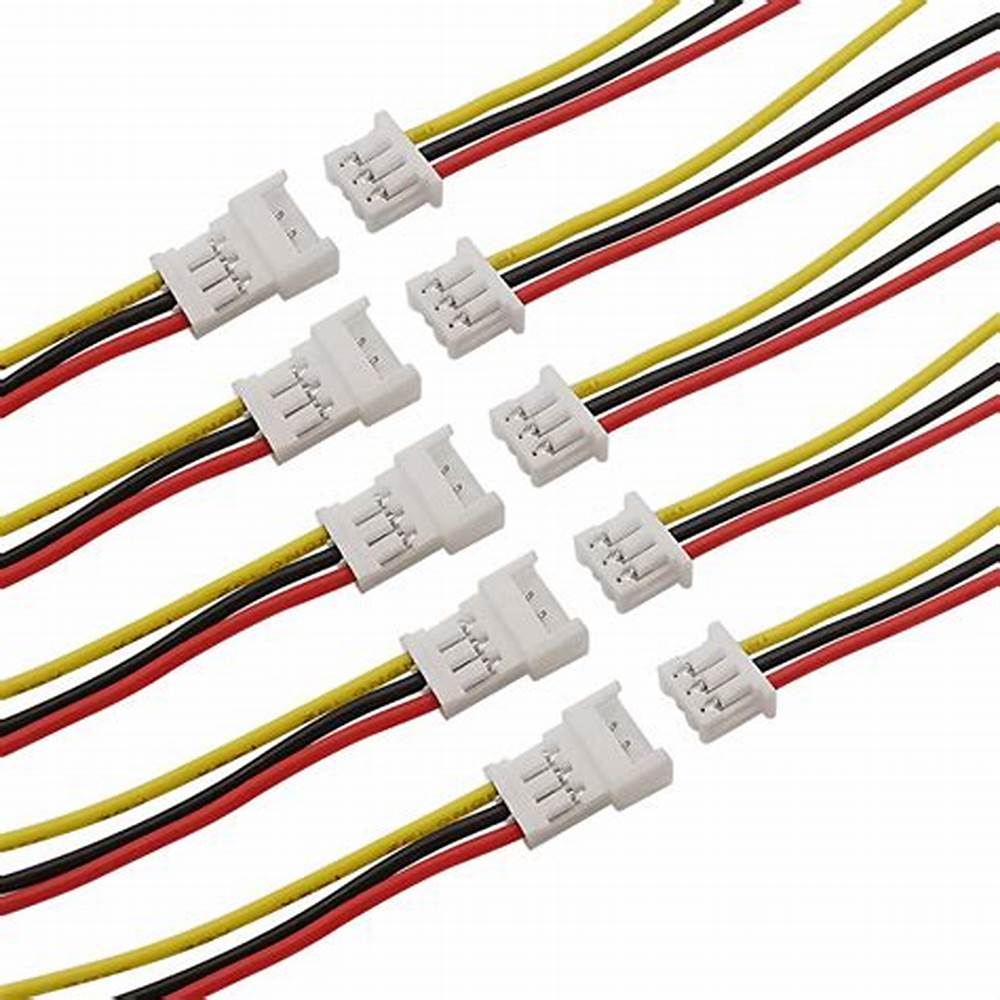

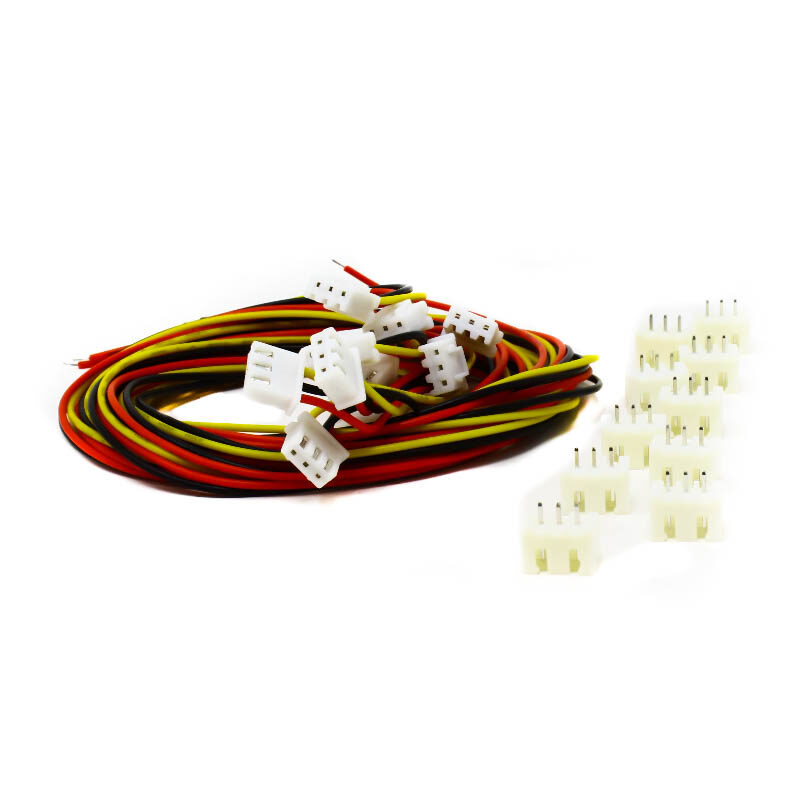

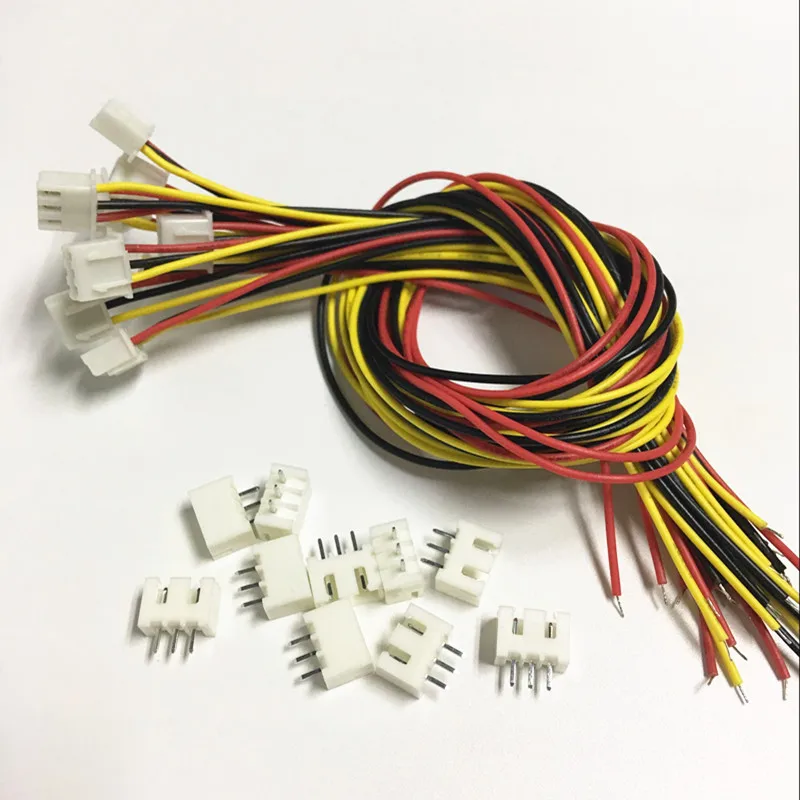

3 Pin JST XH 2.54mm Pitch Plug and Socket with Cable(Pack of 10)
Introducing our versatile 3 Pin JST XH 2.54mm Pitch Plug and Socket with Cable (Pack of 10). This multipurpose cable is designed to cater to a wide range of applications, providing reliable connectivity in various settings. With a generous length of 30cm and constructed with 26 gauge wires on the AWG scale, this cable offers flexibility and durability for your projects.
Applications:
- AC power supply to PCs and lab equipment
- Suitable for all types of RCs including cars, boats, and planes
- Ideal for CCTV connections, pick-ups, and more
Please note that the color of wires may vary.
Features:
- Crafted from electrical fire retardant material for safety
- Solid and durable construction ensures long-lasting performance
- Safe and easy to install, offering hassle-free connectivity
- RoHS compliant, meeting high standards of environmental responsibility
Enhance your projects with the reliability and safety of our 3 Pin JST XH 2.54mm Pitch Plug and Socket with Cable (Pack of 10).
Specifications:
| Current Handling Capacity (A) | 3 |
|---|---|
| No. of Contact Points | 3 |
| Connector Type | JST XH |
| Contact Material | Phosphor Bronze |
| Contact Plating | Nickel |
| Metal Connector Size (mm) | 4.5 |
| Operating Temperature (°C): | -25 to 85 |
| Flammability Rating | UL94V-0 |
| Cable Length (cm) | 30 |
| Connector Dimensions(L x W x H) (mm) | 9 x 5.5 x 7 |
| Weight (g): | 28 |
| Allowed Wire Size (AWG): | 30 ~ 26 |
Package Includes:
1 x 3 Pin JST XH 2.54mm Pitch Plug and Socket with Cable – 10 Pcs.
3 Pin JST XH 2.54mm Pitch Plug and Socket with Cable Overview
The 3 Pin JST XH 2.54mm Pitch Plug and Socket with Cable is a ready-to-use harness featuring male and female JST XH connectors on a 30 cm length of 26 AWG wire. Designed for secure low-voltage power or signal connections, this pack of 10 makes it easy to link PCBs, modules, RC components, CCTV cameras and lab equipment.
Key Features of 3 Pin JST XH 2.54mm Pitch Plug and Socket with Cable
- Standard 2.54 mm pitch JST XH series connectors (male plug + female socket)
- 30 cm flexible cable with 26 AWG solid wire for reliable conductivity
- Pack of 10 harnesses for multiple project setups
- RoHS compliant materials ensure environmental safety
- Durable housing with secure latch for vibration-resistant connections
- Genuine product sourcing and fast shipping from Zbotic
Applications and Use Cases
- Powering small PCBs, fans or sensors in desktop computers and labs
- Signal and low-power feeds for RC servos, receivers and speed controllers
- Linking CCTV cameras, DVR pick-ups and auxiliary modules
- Prototyping on breadboards or custom control panels
- Connecting LED strips, audio modules, or microcontroller shields
How to Use 3 Pin JST XH 2.54mm Pitch Plug and Socket with Cable
Simply align the keyed JST XH plug and socket housings, press until the latch clicks, and verify correct polarity before powering your device. For custom lengths, cut the cable, strip the ends carefully, and crimp on compatible JST XH contacts using a proper crimping tool.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Q: Does each cable include both the plug and socket?
A: Yes, every harness comes with a 3 pin JST XH male plug on one end and a matching female socket on the other, ready for immediate use.
Q: Can I shorten the cable to fit my enclosure?
A: Absolutely. Cut the cable to your desired length, strip the insulation, and re-crimp JST XH contacts with a compatible crimping tool to maintain reliable connections.
Q: What types of signals and currents can this cable handle?
A: With 26 AWG conductors and a 2.54 mm pitch, it’s ideal for low-voltage power or signal lines in electronics projects—common in RC control systems, small sensors, PCBs and CCTV setups.
