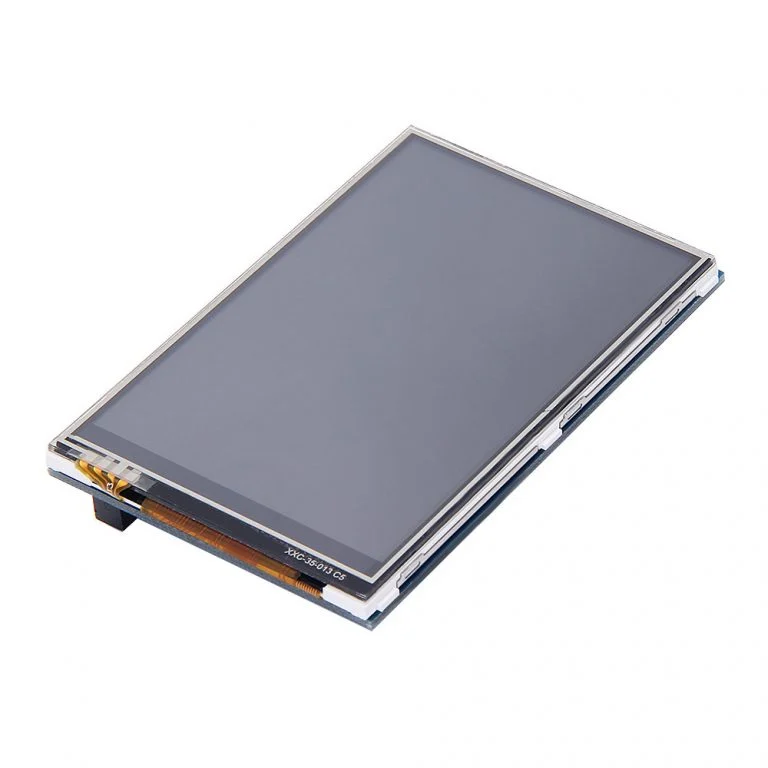

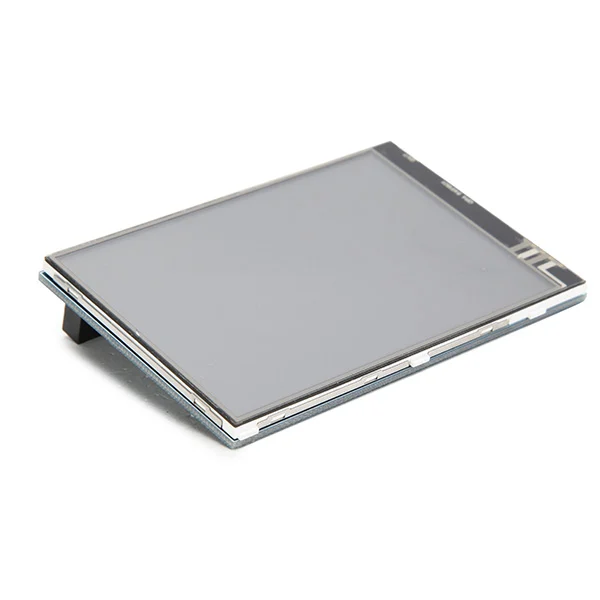

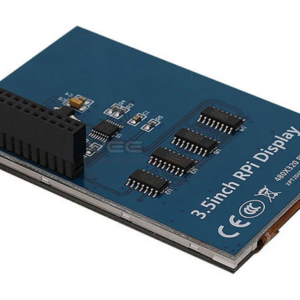

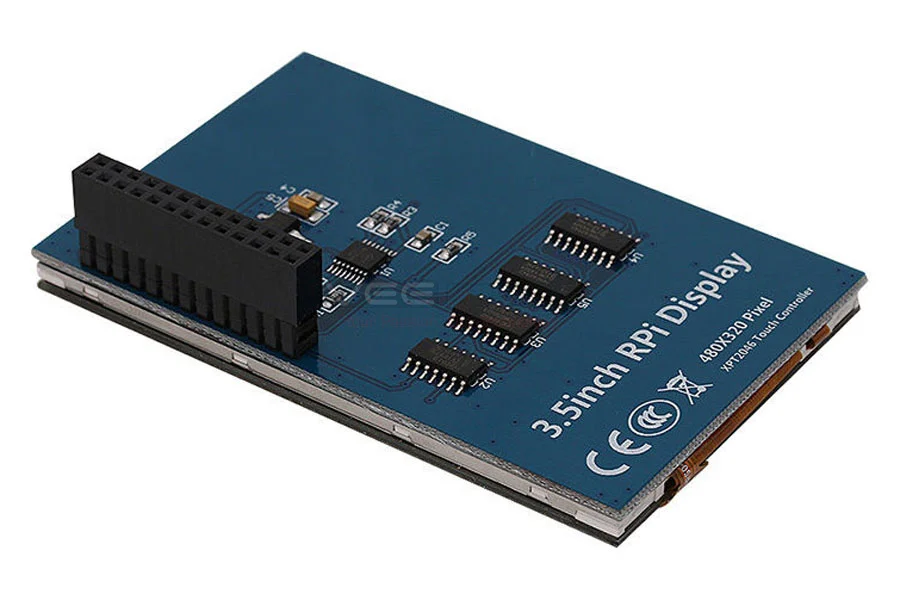

3.5 inch TFT LCD Touch Screen Display for Raspberry Pi

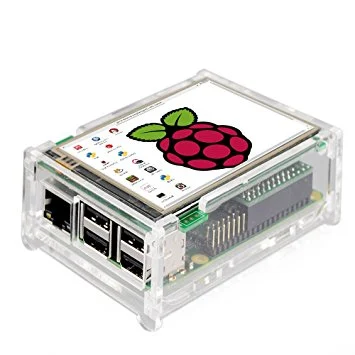

This module is a 3.5 inch touch screen display for Raspberry Pi, based on the latest Linux Core system. It is perfect for DIY projects that can be done anywhere and anytime, without needing extra power or a case. It fits on top of the Pi and can replace HDMI monitors. It also includes a stylus for the small screen.
Features
- Designed for Raspberry Pi, an ideal alternative solution for HDMI monitor
- Supports all revision of Raspberry Pi (directly-pluggable models)
- Works with Raspbian/Ubuntu directly
- Comes with a full set of screws and nuts for assembly
- 320×480 resolution, better display
- Lightweight and easy to install
Specifications:
| LCD Type | TFT |
|---|---|
| Interface | SPI |
| Touch Screen Type | Resistive Screen |
| Touch Controller | XPT2046 |
| Colors | 65536 |
| Backlight | Yes, LED |
| Resolution (Pixel) | 320*480 |
| Aspect Ratio | 8:5 |
| Dimensions (LxWxH) | 85 x 55 x 20 mm |
| Weight | 60 gm |

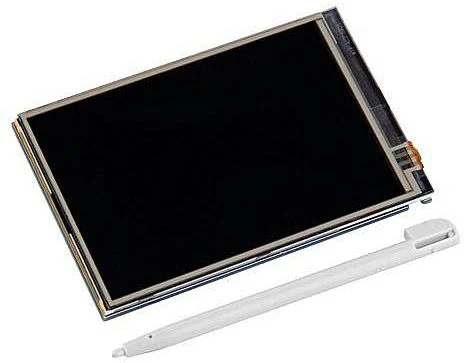

Package Includes

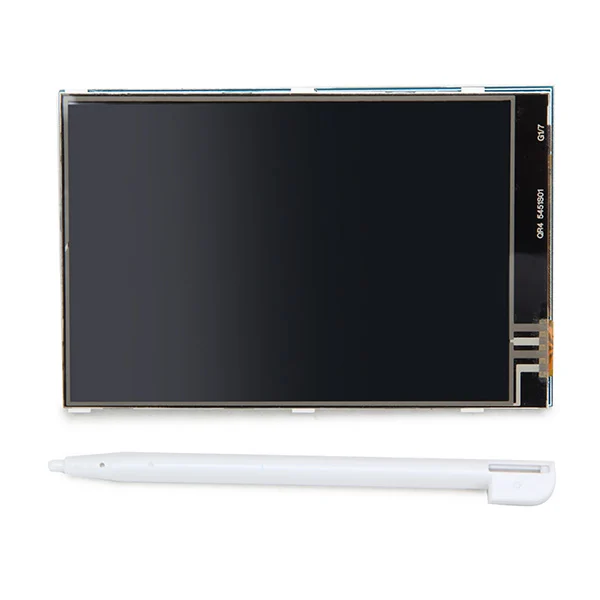

- 1 x 3.5″ Touch-Screen LCD Raspberry Pi Display.

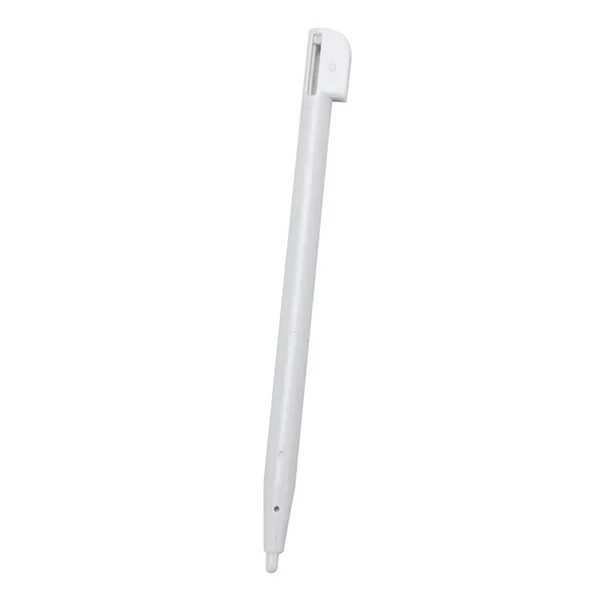

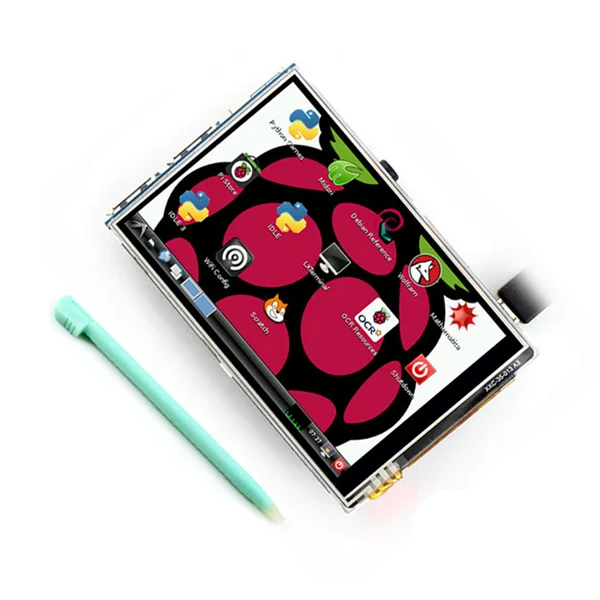

- 1 x Touch Screen Stylus.
Useful Link :
3.5 inch TFT LCD Touch Screen Display for Raspberry Pi Overview
The 3.5 inch TFT LCD Touch Screen Display is a compact, high-resolution module designed to mount directly onto any Raspberry Pi revision. With a 320×480 LED-backlit TFT panel and a resistive XPT2046 touch controller, it replaces external HDMI monitors for portable DIY projects and on-board interfaces.
Key Features of 3.5 inch TFT LCD Touch Screen Display for Raspberry Pi
- 320×480 pixel TFT LCD with bright LED backlight for clear visuals
- Resistive touch panel controlled by XPT2046, includes stylus for precise input

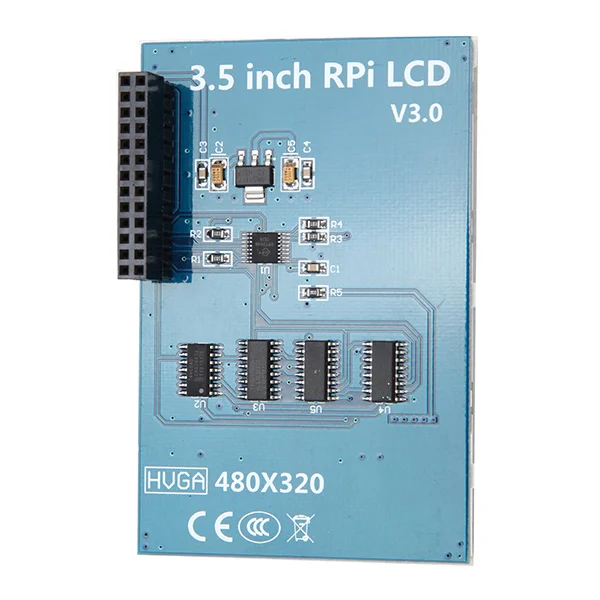

- Direct GPIO connection to all Raspberry Pi revisions—no extra power cable needed
- Out-of-the-box support on Raspbian and Ubuntu, plug-and-play on Linux Core systems
- Complete mounting kit with screws and nuts for secure assembly
- Genuine product from Zbotic, fast shipping across India
Applications and Use Cases
- Portable gaming console built on Raspberry Pi
- Human-machine interface for home automation dashboards
- Onboard display for robotics projects and mobile robots
- Field data logger with touchscreen form entry
- Compact media center control panel in DIY AV setups
How to Use 3.5 inch TFT LCD Touch Screen Display for Raspberry Pi

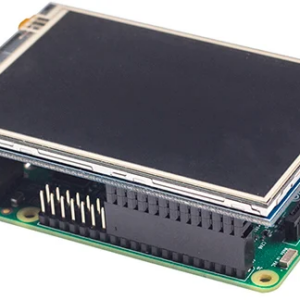

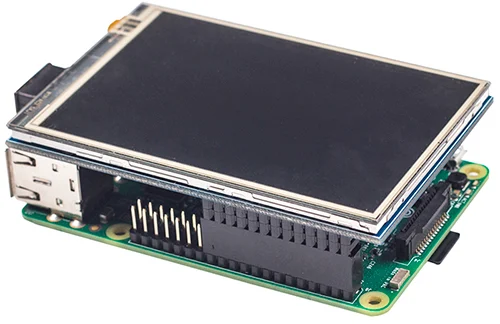

Mount the display onto the Raspberry Pi’s GPIO header, secure it with the included screws and nuts, then power on the board. Enable the display driver by editing /boot/config.txt (add the appropriate dtoverlay line), reboot, and run a touch calibration utility such as xinput-calibrator to align the resistive panel.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is this display compatible with Raspberry Pi 4?
Yes. The 3.5 inch TFT module plugs into the 40-pin GPIO header and is fully compatible with Raspberry Pi 4, Pi 3, Pi 2, and Pi Zero models.
How do I install drivers for this touch screen?
On Raspbian, download the vendor’s driver package, add the provided dtoverlay entry to /boot/config.txt, reboot, and then install and run xinput-calibrator to map touch coordinates.
Does it include the mounting hardware and stylus?
Yes. Each unit ships with a full set of screws and nuts for assembly plus a stylus to help operate the resistive touch surface accurately.
