This is the Black variant of the 230m P/N B-30-1000 Insulated PVC Coated 30AWG Wire Wrapping Wire-Black in PVC wire. Available at ₹434.24 (₹368.00 + GST) with free shipping across India.

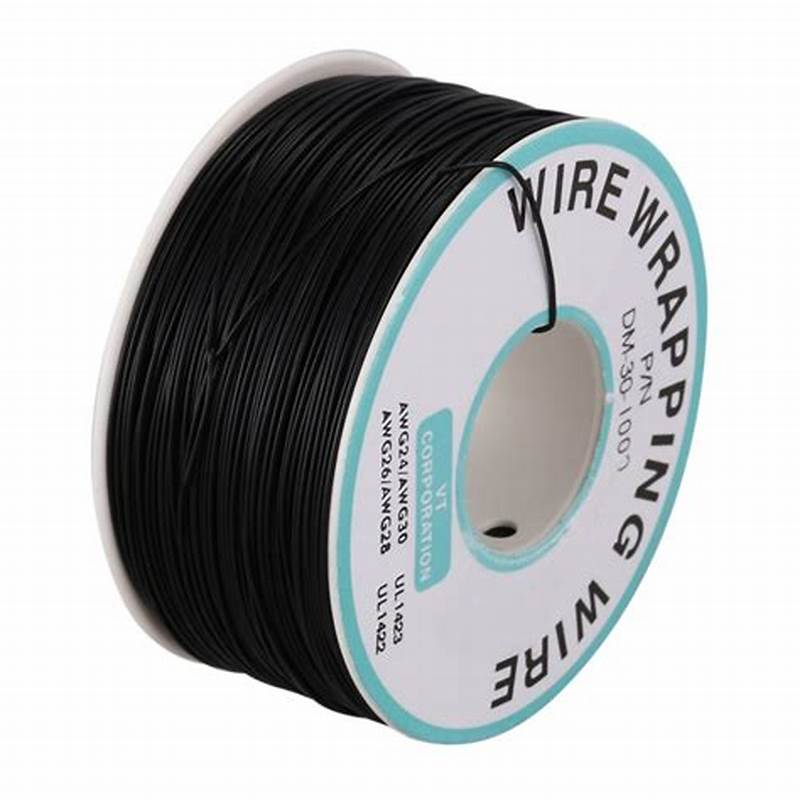

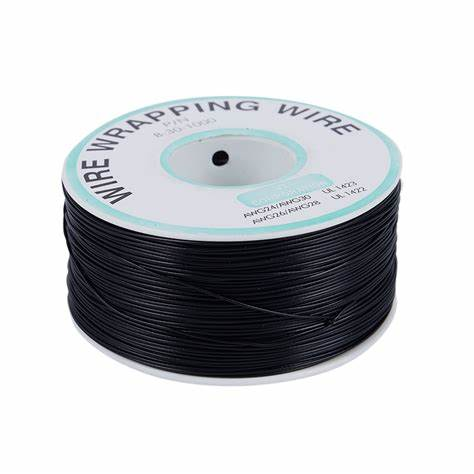

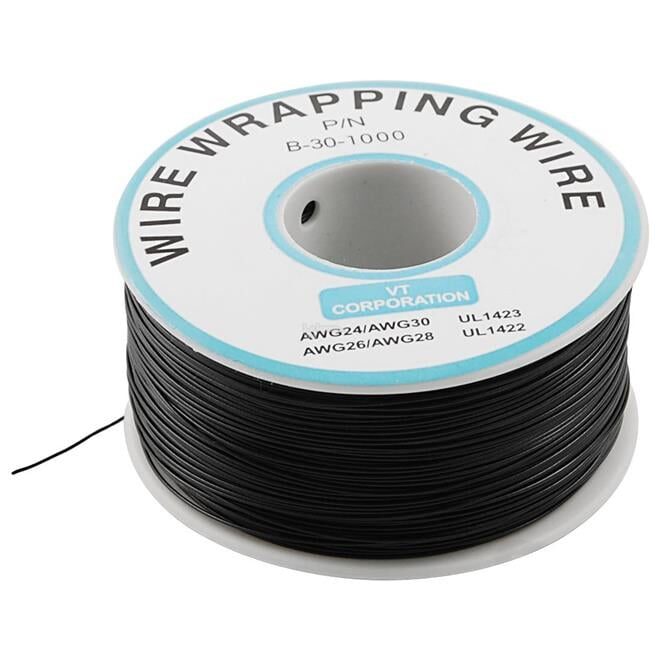

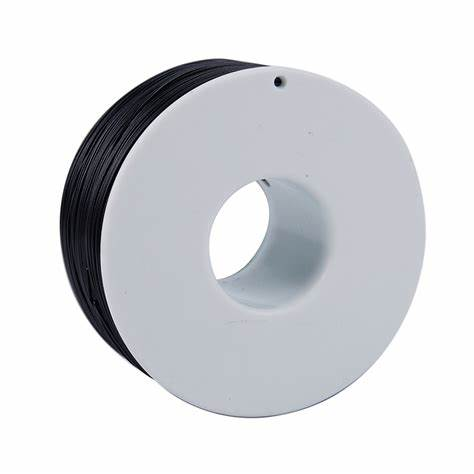

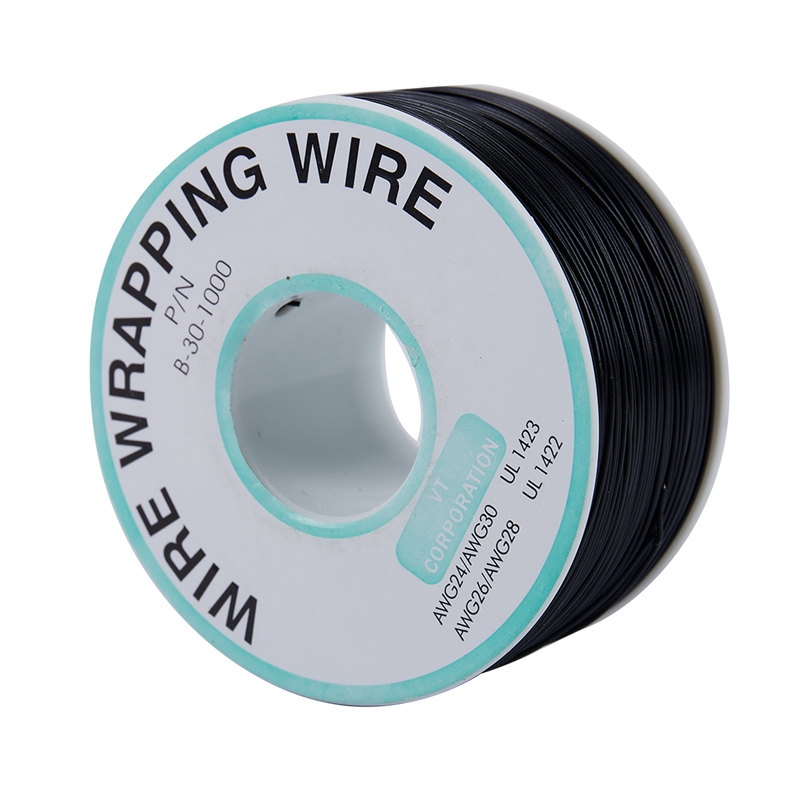

230m P/N B-30-1000 Insulated PVC Coated 30AWG Wire Wrapping Wire-Black
The 230-meter rolls of P/N B-30-1000 Insulated PVC Coated 30AWG Wire Wrapping Wire are an essential tool for creating secure and efficient electronics connections during prototyping or design. Available in a range of colors, these wire-wrapping wires allow for the creation of stable, solderless connections by tightly wrapping the wire around pins to form cold bonds with significant force.
Ideal for electronics prototyping and design, these 230-meter rolls of 30AWG wire offer an excellent solution for Makers who want to build circuits without the need for soldering or exposure to high temperatures. By simply wrapping the wire around pins using a basic wire-wrapping tool, users can establish reliable, efficient connections between components. The variety of colors makes it easy to identify connections without the need to trace individual wires, and the generous length ensures compatibility with nearly any PCB layout.
Wire wrapping, despite its simplicity, can create connections that are often more reliable than soldered ones. The force applied during wrapping ensures multiple contact points between the wire and the pin, resulting in a strong bond. Plus, the lack of solder and high temperatures reduces the risk of corrosion, making wire-wrapped connections long-lasting and highly durable.
Note: This is a Single strand solid wire.
Features:
- Insulation wrap wire.
- Tin-plated copper breadboard jumper cable for test jig, jtag or any electronic test uses.
- The plastic spool will be provided together for better organizing.
- Widely use for laptop, motherboard, LCD display, breadboard, electronic test and other PCB soldering fly line.
Specification:
| Temperature Rating | 105º Celsius |
|---|---|
| Reel Size | 7 x 3.3 cm |
| Material | Plastic, PVC, Tin Plated Copper |
| Diameter of Copper core | 0.25mm |
| Outer diameter of single core wire | 0.55mm |
| Gross Weight(gm) | 172 |
| Shipping Weight | 0.2 kg |
| Shipping Dimensions | 10 × 6 × 3 cm |
Package Includes:
1 x 230m P/N B-30-1000 Insulated PVC Coated 30AWG Wire Wrapping Wire-Black
PCB Hot Plate: Reflow Soldering with PID Control
Table of Contents What Is a PCB Hot Plate? How Reflow Soldering Works Components for the Build PID...
Read More →
Cooling Fan Selection: 5V, 12V, and 24V Fan Guide
Table of Contents Why Cooling Fans Matter in Electronics Understanding Fan Voltage Ratings: 5V, 12V, and 24V Fan...
Read More →
Soldering Iron Temperature Guide: What Temp for Each Task
Soldering Iron Temperature Guide: What Temperature for Each Task One of the most common mistakes new electronics makers...
Read More →Technical Specifications
| Model | B-30-1000 |
|---|---|
| Wire Gauge | 30 AWG |
| Color | Black |
| SKU | AI3466 |
| Weight | 0.2 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 230m P/N B-30-1000 Insulated PVC Coated 30AWG Wire Wrapping Wire-Black is a versatile pvc wire used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
