This is the 200mm variant of the 200mm Trapezoidal 4 Start Lead Screw 8mm Thread 2mm Pitch Lead Screw with Copper Nut in Lead Screw and Nut. Available at Original price was: ₹225.38.₹178.18Current price is: ₹178.18. (₹151.00 + GST) with free shipping across India.

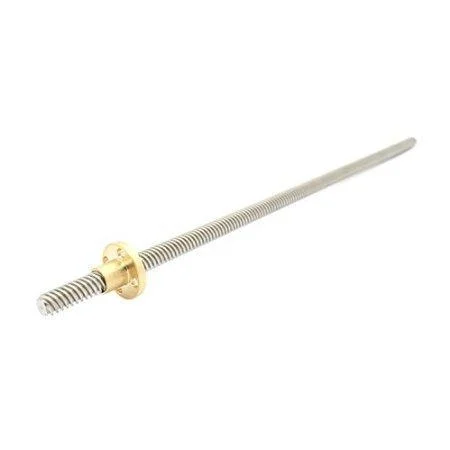

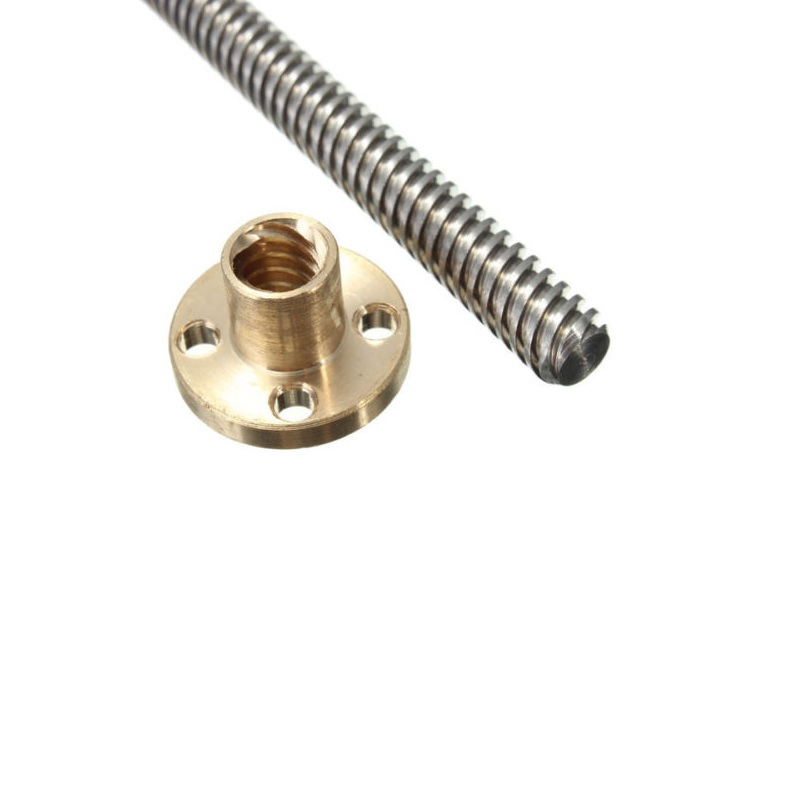

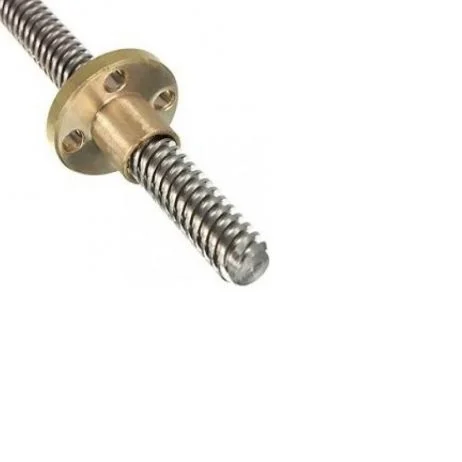

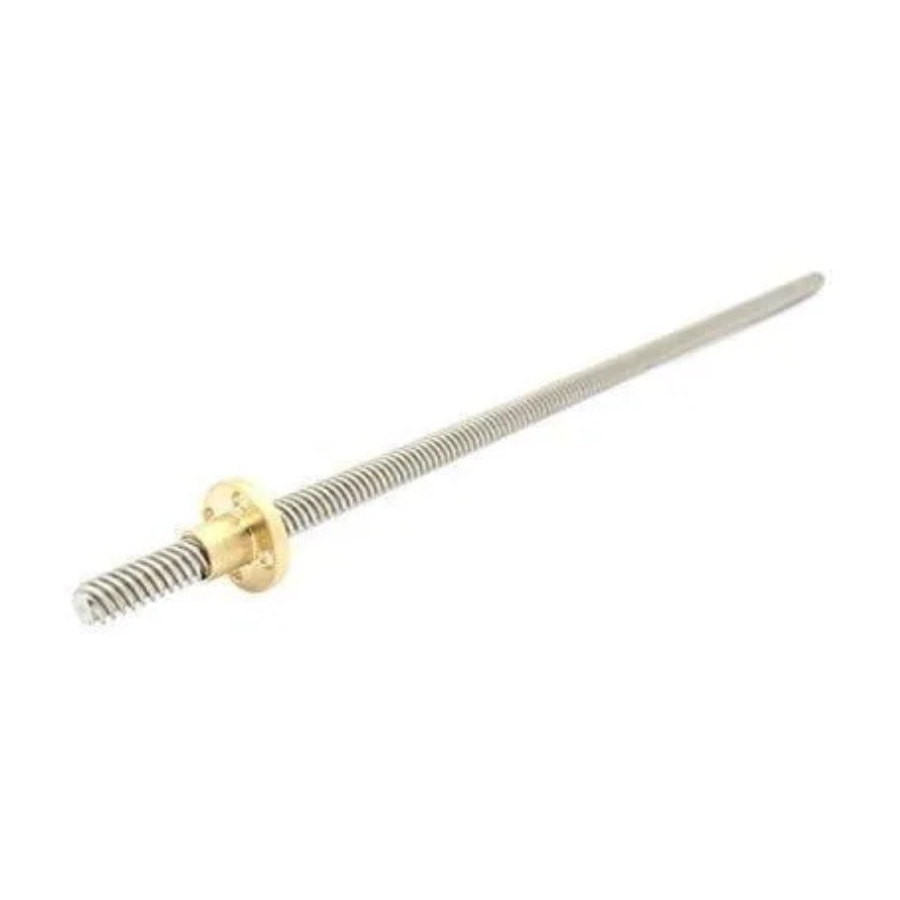

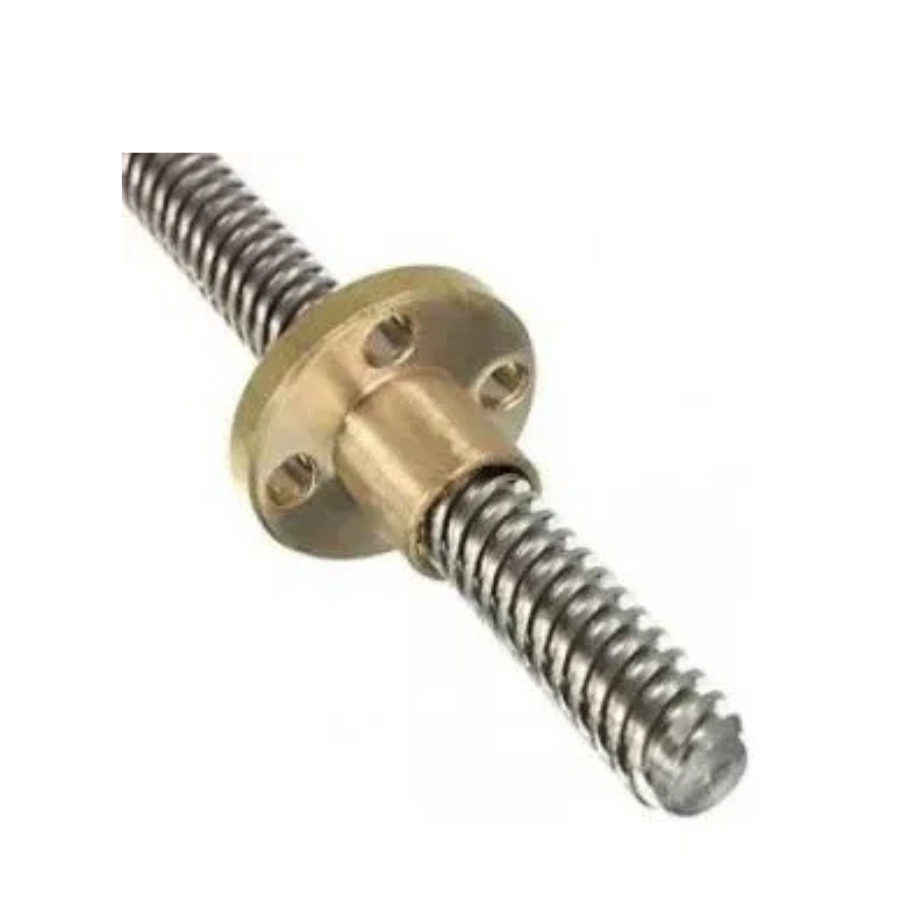

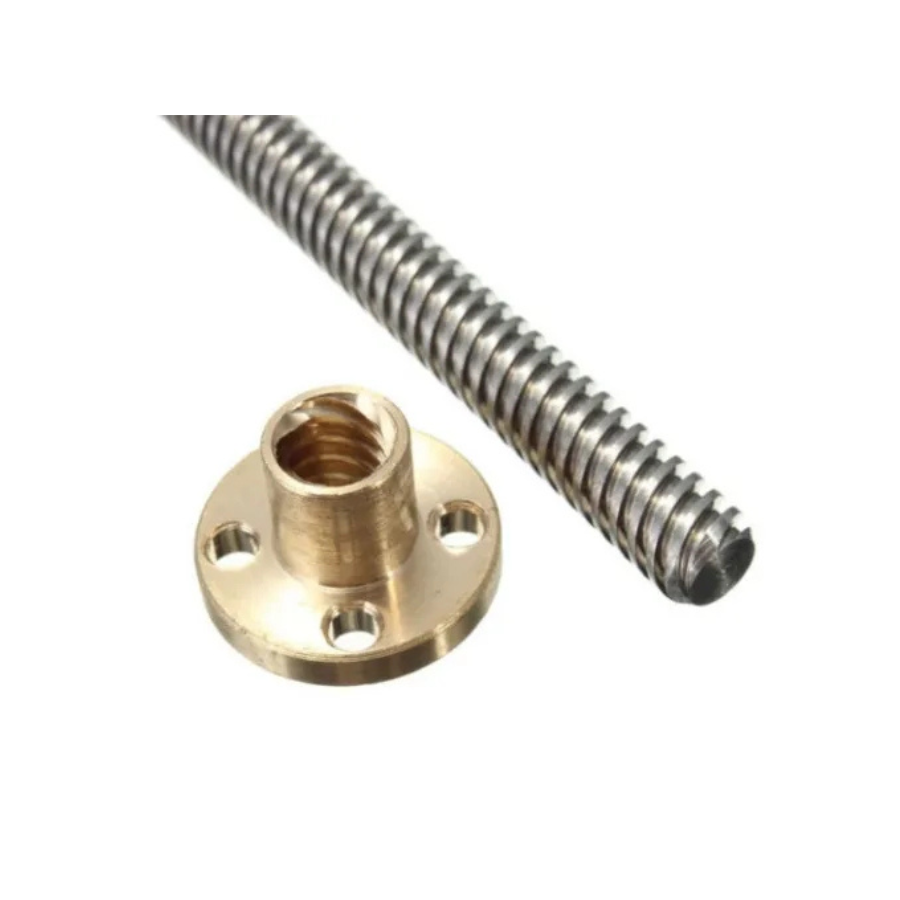

200mm Trapezoidal 4 Start Lead Screw 8mm Thread 2mm Pitch Lead Screw with Copper Nut
This product is a 200mm trapezoidal lead screw with a copper nut and four threads. It has a 2mm pitch and an 8mm thread diameter. It is suitable for general machine tools, such as 3D printers.
This lead screw is durable, accurate, and resistant to rust. It has low friction and long service life. It is a new type of screw that can be used with stepper motors, machine tool rails, and other equipment.
To know more about the pitch, please refer to the schematic below.
Features :
- 4 Start Lead Screw
- Mainly use for Stepping motor driving guide rail.
- T shape design, made of high-quality stainless steel material.
- Easy to install and convenient to use.
- Fine producing and practical.
Specification:
| Lead Screw Material | 304 Stainless Steel. |
|---|---|
| Screw Type | 4 Start |
| Length of Bolt (mm) | 200 |
| Bolt Body Diameter (mm) | 8 |
| Brass Nut Size (Dia. x Height) mm | 22 x 13 |
| Weight (g): | 75 |
| Shipping Weight | 0.078 kg |
| Shipping Dimensions | 21 × 3 × 3 cm |
Package Includes :
1 x 200mm Trapezoidal 4 Start Lead Screw
1 x Brass Nut
Technical Specifications
| Size | 200mm |
|---|---|
| SKU | AI2744 |
| Weight | 0.23 kg |
| Availability | In Stock |
Applications & Use Cases
The 200mm Trapezoidal 4 Start Lead Screw 8mm Thread 2mm Pitch Lead Screw with Copper Nut is a versatile lead screw and nut used across a wide range of applications including 3D printer maintenance, printer upgrades, custom printer builds, and replacement parts.
Common use cases:
- Replacing a worn-out nozzle or extruder gear
- Upgrading to a direct drive extruder
- Building a custom CoreXY printer
This product is ideal for 3D printer owners and custom printer builders.
Technical Tip: Keep spare nozzles, PTFE tubes, and belts on hand. Regular maintenance significantly extends printer life and print quality.
