This is the Green variant of the 12mm 24V Ring Light Momentary Metal Switch Green Light in Metal Push Button Switch. Available at ₹118.00 (₹100.00 + GST) with free shipping across India.
Looking for 12mm Switch? 12mm 24V Ring Light Momentary Metal Switch Green Light is available at Zbotic with fast shipping across India.

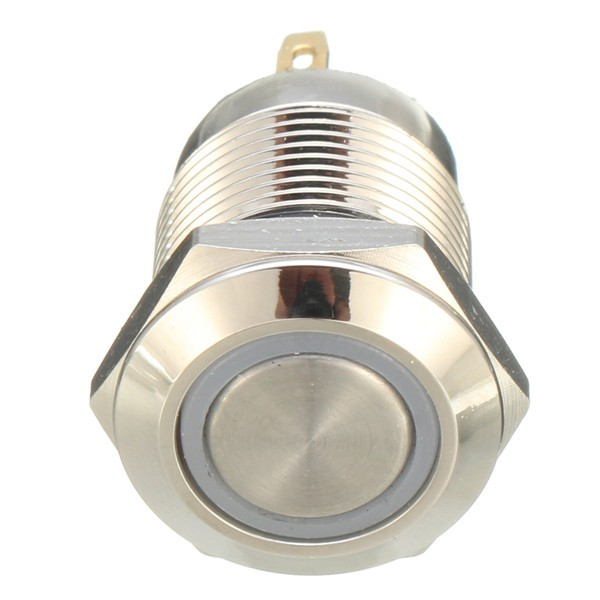

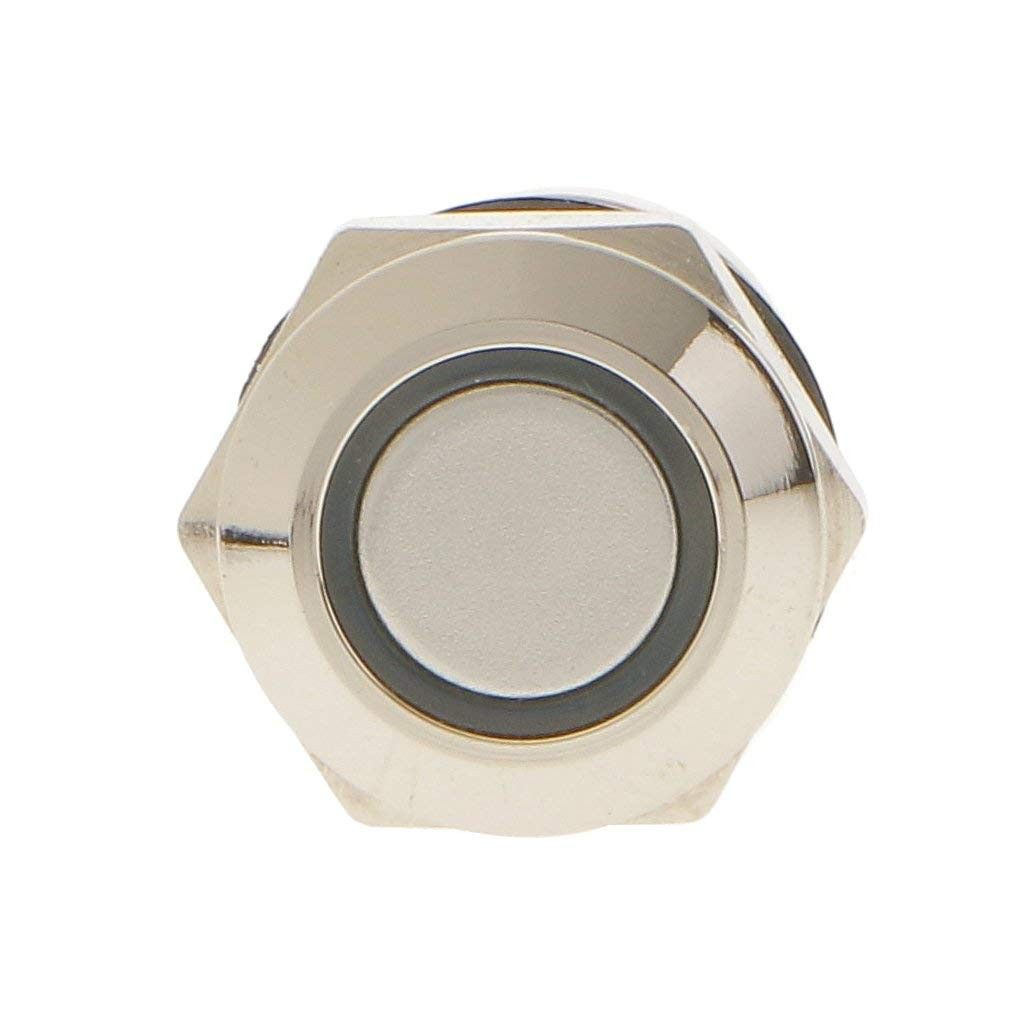

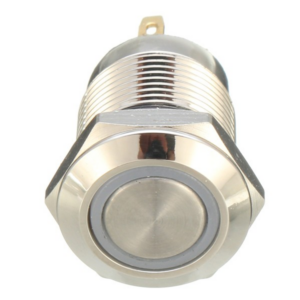

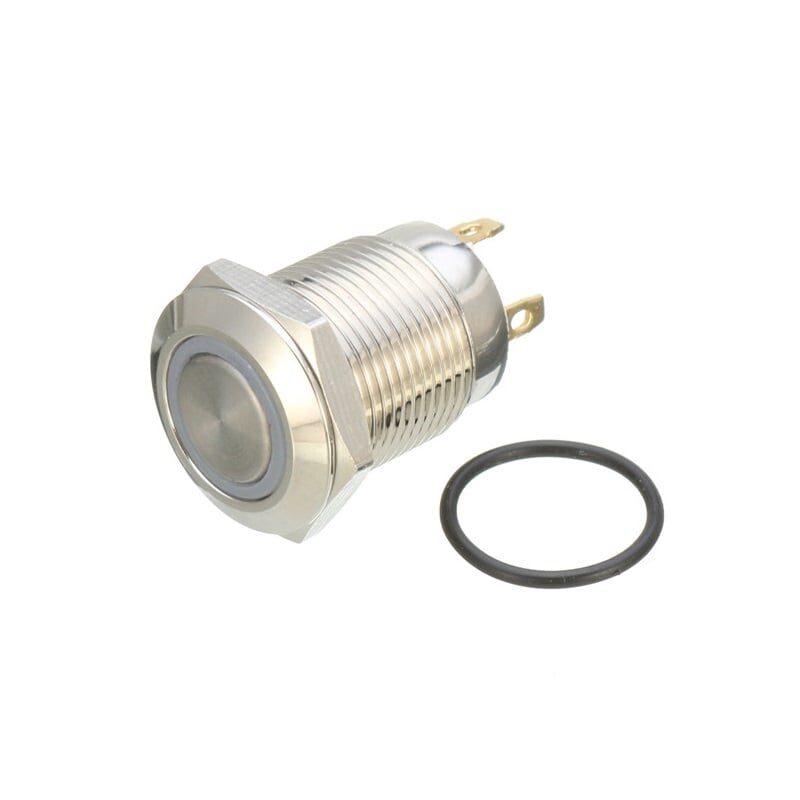

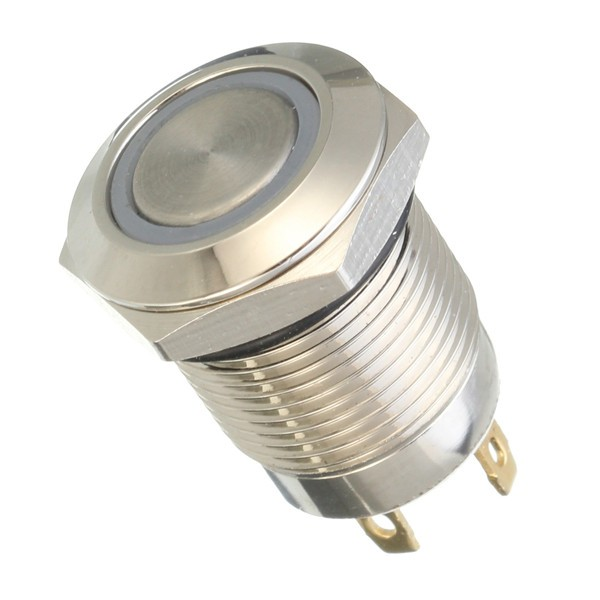

12mm 24V Ring Light Momentary Metal Switch Green Light
The Momentary Metal Pushbutton Switch is built for durability and reliability in heavy-duty applications. Featuring a sturdy stainless steel body and an IP67 protection rating, it ensures long-lasting performance even in harsh environments. This switch is equipped with an illuminated Yellow LED ring, enhancing both the aesthetics and functionality of your dashboard or control panel.
With an SPDT configuration, 12mm threading, and a 1mm pitch, it offers versatility for a wide range of uses. The premium stainless steel finish and LED light ring provide a sleek, professional appearance. Available in multiple LED colors, you can select the one that best suits your application needs.
Ideal for basic On/Off functions, this non-momentary switch includes a self-locking mechanism for added security. It supports up to 3A at 24VDC for the switch and is rated at 5V for the LED, ensuring both safety and reliability. The small solder lugs simplify installation, making it easy to integrate into your system.
In summary, the Momentary Metal Pushbutton Switch combines superior durability, functional versatility, and aesthetic appeal, making it an excellent choice for those who require a dependable, high-quality switch for their control systems.
Note:
- Momentary means it turns off as soon as your pressure is released.
- Non-momentary switches maintain the positions even if we release the pressure.
Features:
- Stainless steel material for long-term use
- High-end appearance and good to touch.
- Inbuilt Colorful Ring illumination LED

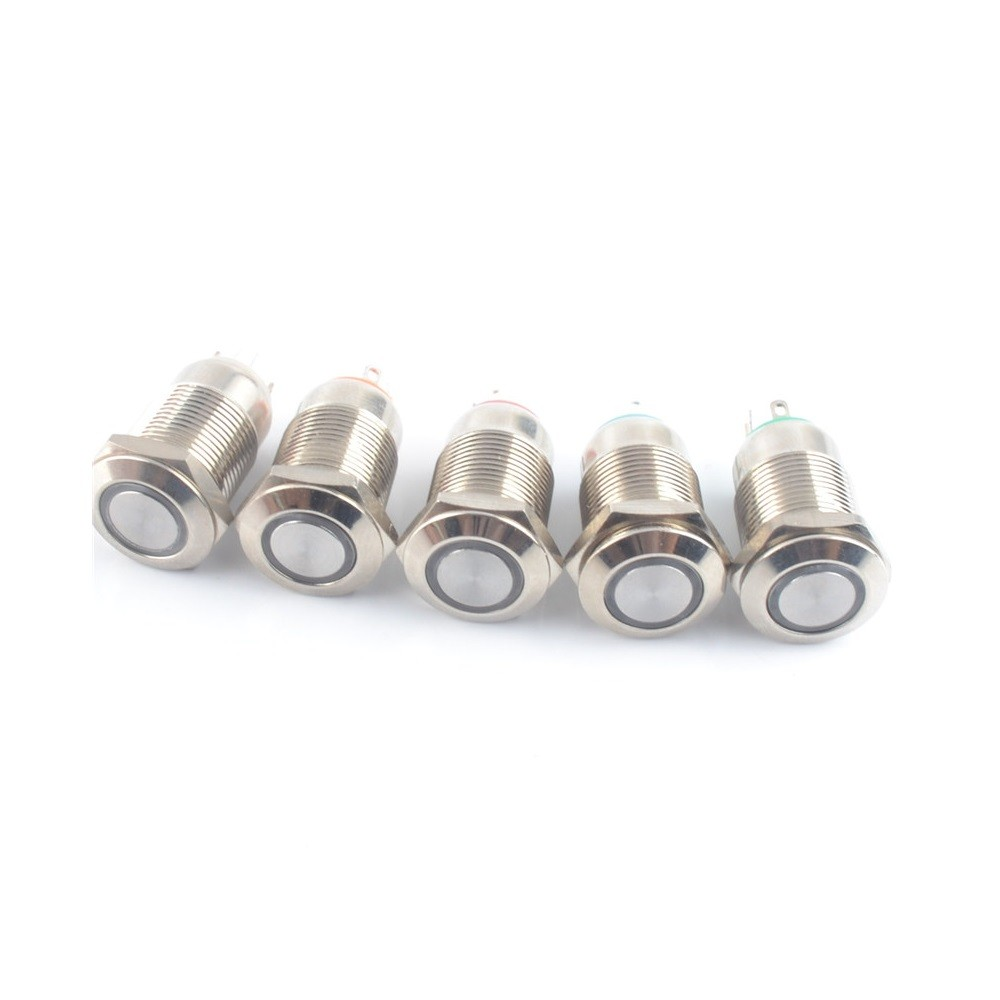

- Available in Various LED Color

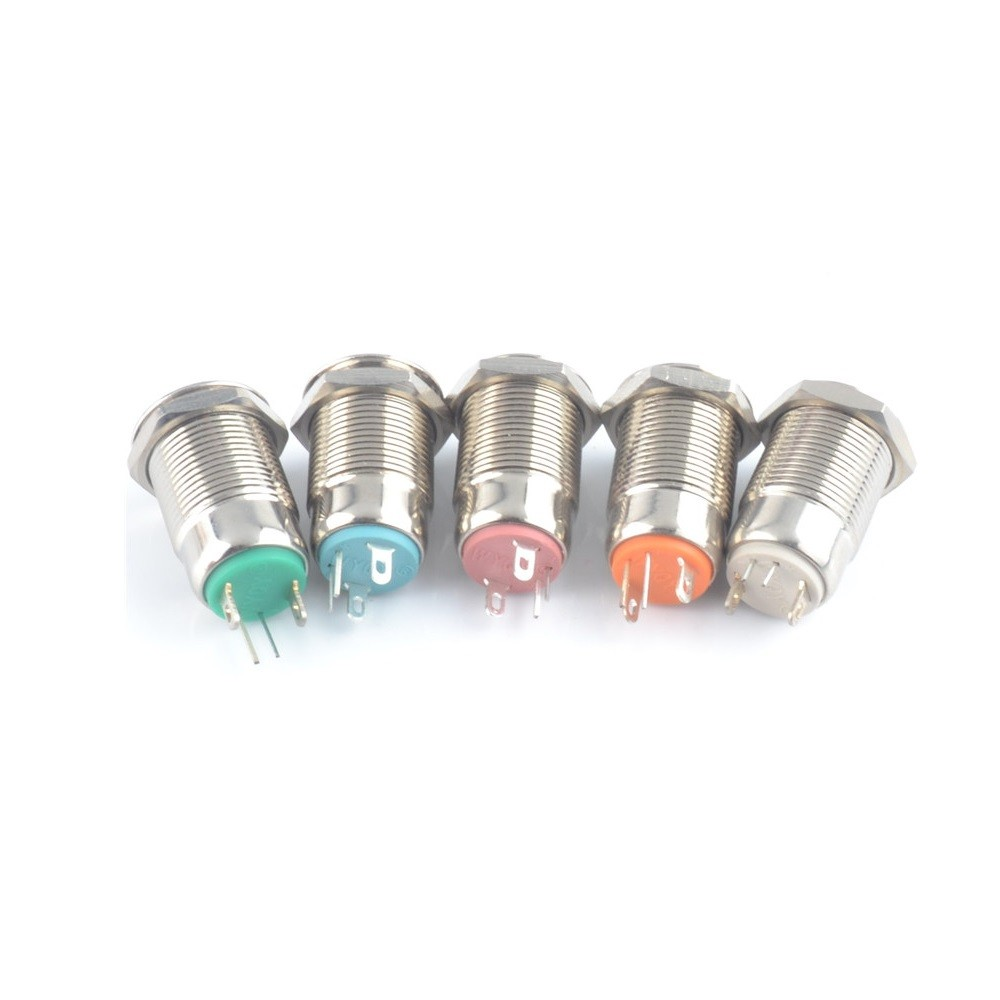

- Independent LED terminals
- Bright daylight LEDs
- Single pole push to make and Push to break Function
- Front and rear panel seal to IP67
- Integral supply resistors
- TVS protection
- Good electrical conductivity
- Non-Momentary type push-button switch
- Rubber ring and hexagon nut to fix, Waterproof and Dustproof
Specification:
| Feature | Specification |
|---|---|
| Switch Type | Momentary |
| Body Material | Stainless Steel |
| LED Color | Green |
| LED Voltage Rating | 5V |
| Switch Voltage Rating | 24V DC |
| Switch Current Rating | Up to 3A |
| IP Rating | IP67 |
| Thread Size | 12mm |
| Pitch | 1mm |
| Operation | Self-locking (Non-momentary) |
| Overall Length (including leads) | 26mm |
| Mounting | Panel Mount |
| Terminal Type | Small Solder Lugs |
| Environmental Protection | Dust-tight and Immersion up to 1m of water for 30min |
| Illumination | Ring Light |
| Application | Dashboard, Control Panel |
| Features | Heavy-duty, Durable, Premium Appearance |
| Certification | CE, RoHS |
Package Includes:
1 x 12mm 24V Ring Light Metal Switch-Green Light
12mm 24V Ring Light Momentary Metal Switch Green Light Overview
The 12mm 24V Ring Light Momentary Metal Switch Green Light is a robust, stainless steel pushbutton designed for momentary operation with a bright green LED ring. It’s ideal for control panels in industrial, automotive, and marine environments requiring a durable, IP67-rated switch.
Key Features of 12mm 24V Ring Light Momentary Metal Switch Green Light
- 12mm Stainless Steel Body: Corrosion-resistant housing for long-term durability.
- 24V Green LED Ring: Bright daylight illumination to indicate status at a glance.
- Momentary SPDT Action: Single Pole Double Throw configuration for versatile signal control.
- IP67 Protection: Water- and dust-tight design suitable for harsh environments.
- 12mm Thread & 1mm Pitch: Standard mounting size for easy panel installation.
- Fast Shipping from Zbotic: Dispatch within 24 hours across India.
Applications and Use Cases
- Industrial machinery control stations requiring clear on/off indication.
- Automotive dashboards for auxiliary lighting or ignition control.
- Marine instrumentation panels exposed to water and salt spray.
- DIY electronics projects where a sturdy, illuminated pushbutton is needed.
- Laboratory equipment interfaces demanding reliable momentary switching.
How to Use 12mm 24V Ring Light Momentary Metal Switch Green Light
Drill a 12mm cut-out in your panel and secure the switch with its mounting nut. Wire the SPDT terminals according to your circuit diagram and connect the LED ring’s positive and negative leads to a 24V DC supply. Pressing the button completes the momentary contact and illuminates the green ring to indicate activation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What panel hole size is required for installation?
You need a 12mm diameter hole to mount the switch. The included nut and washer secure it firmly from behind the panel.
Is this switch suitable for outdoor use?
Yes, the IP67 rating ensures dust-tight and water-resistant performance, making it suitable for outdoor and wet environments.
How do I power the green LED ring?
Connect the ring’s positive lead to a 24V DC supply and the negative lead to ground. The LED will illuminate whenever the switch is operational.
Technical Specifications
| Operating Voltage | 24V |
|---|---|
| Size | 12mm |
| Color | Green |
| SKU | AI3396 |
| Weight | 0.02 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 12mm 24V Ring Light Momentary Metal Switch Green Light is a versatile metal push button switch used across a wide range of applications including industrial control panels, automotive dashboards, outdoor enclosures, marine electronics, and professional equipment.
Common use cases:
- Adding a waterproof power switch to an outdoor enclosure
- Building a professional-looking control panel
- Replacing a corroded switch in marine equipment
This product is ideal for industrial designers and professional equipment builders.
Technical Tip: IP65/IP67-rated metal switches are waterproof. LED ring illumination helps visibility in dark environments. Check panel cutout diameter before ordering.
