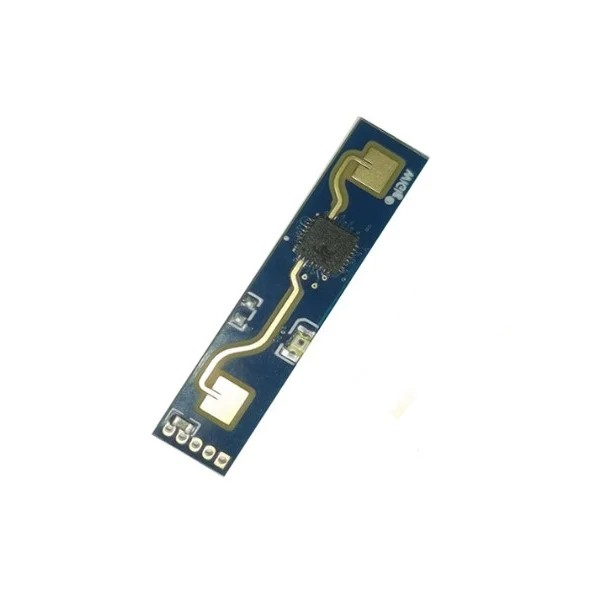

Hi-Link HLK-LD2410 sensor radar module

The Hi-Link HLK-LD2410 is a sophisticated Human Presence Body Induction Radar Sensor Module that offers dependable and accurate distance detection for diverse applications. It operates at a 24GHz frequency and utilizes radar technology to identify human presence, rendering it ideal for occupancy detection, security systems, and automated solutions.

Features:

1. Plug and play, easy assembly
2. The longest sensing distance is up to 5 meters
3. Large detection angle, coverage up to ±60 degrees
4. Small and simplified, the minimum size is only 7mmx35mm
5. Supports various installation methods such as ceiling hanging and wall hanging
6. 24GHz ISM band, compliant with FCC and CE spectrum regulations
7. 5～12V wide voltage power supply

Specifications:

1. Model: HLK-LD2410
2. Detection Angle: up to ±60 degrees
3. Band: 24GHz
4. Power Supply: 5～12V
5. Distance: 5 meters
6. Size: 7mmx35mm

Package Includes:

Hi-Link HLK-LD2410 24Ghz Human Presence Body Induction Distance Detection Radar Sensor Module support GPIO and UART ports
