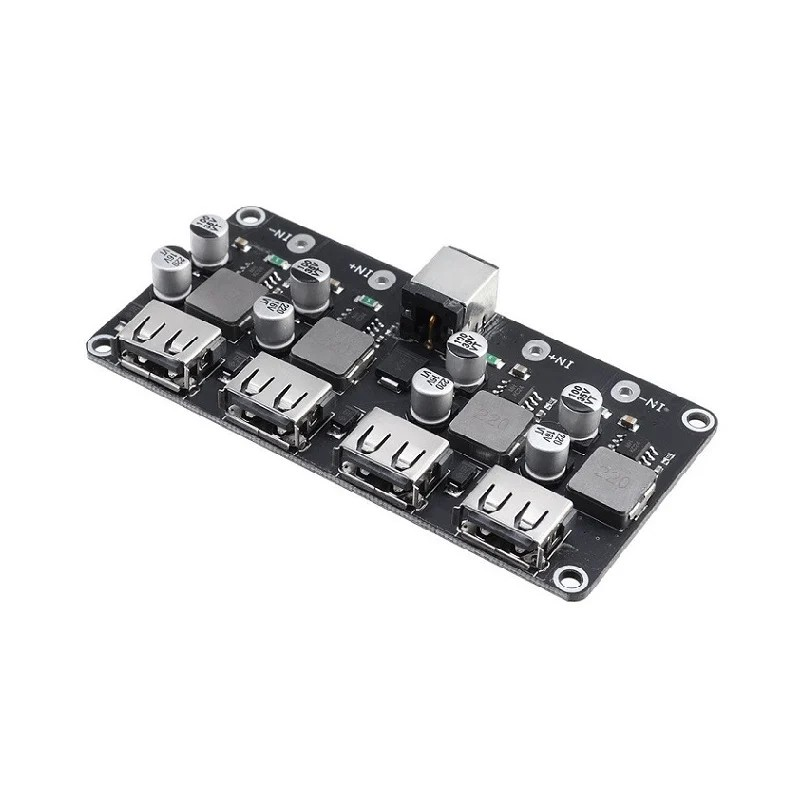

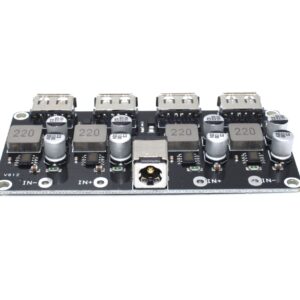

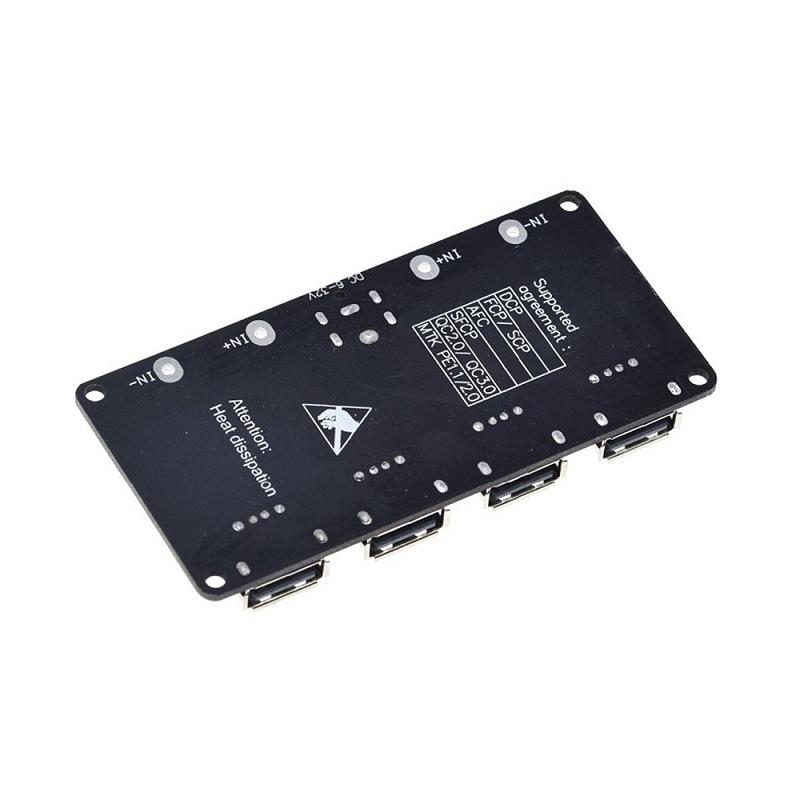

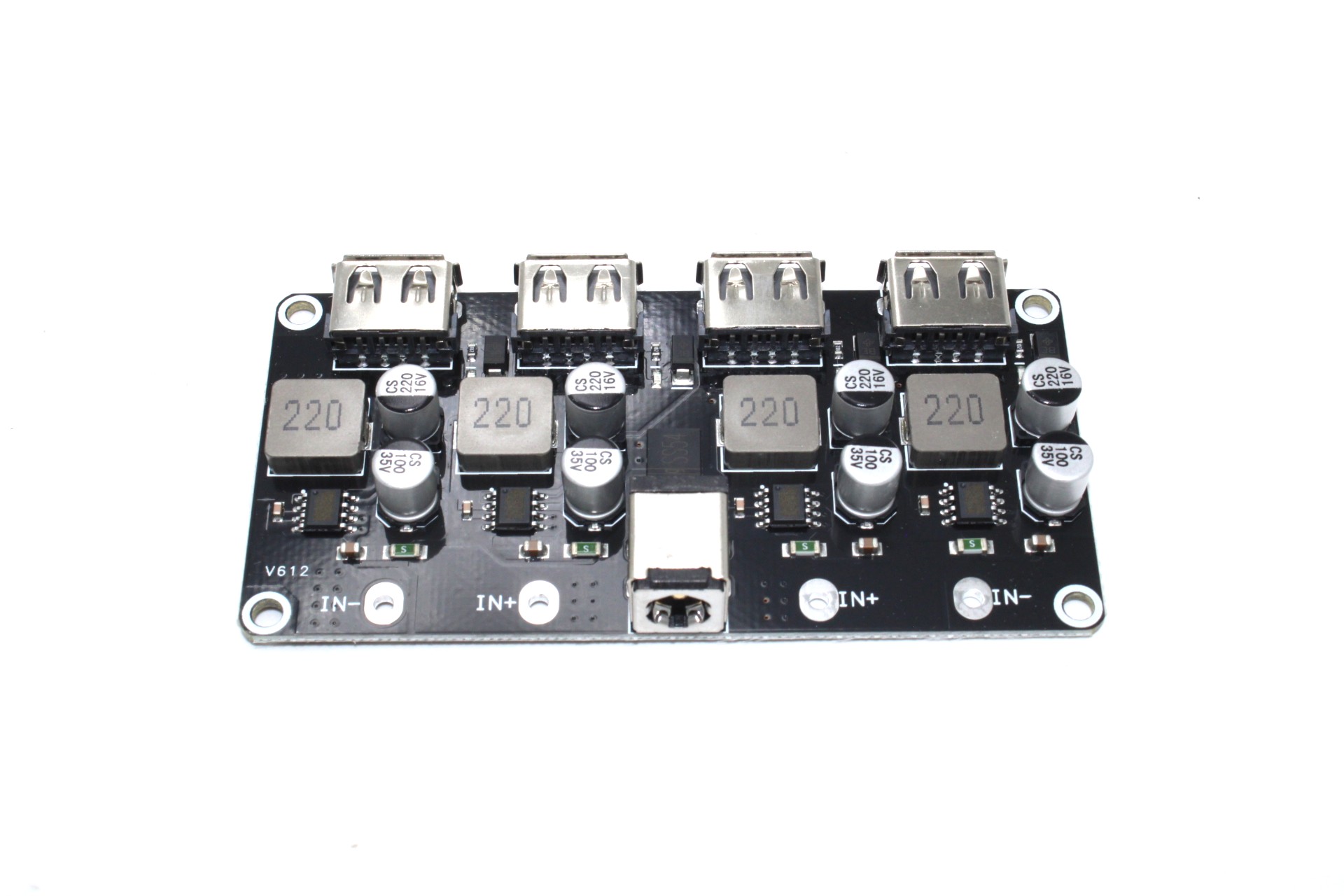

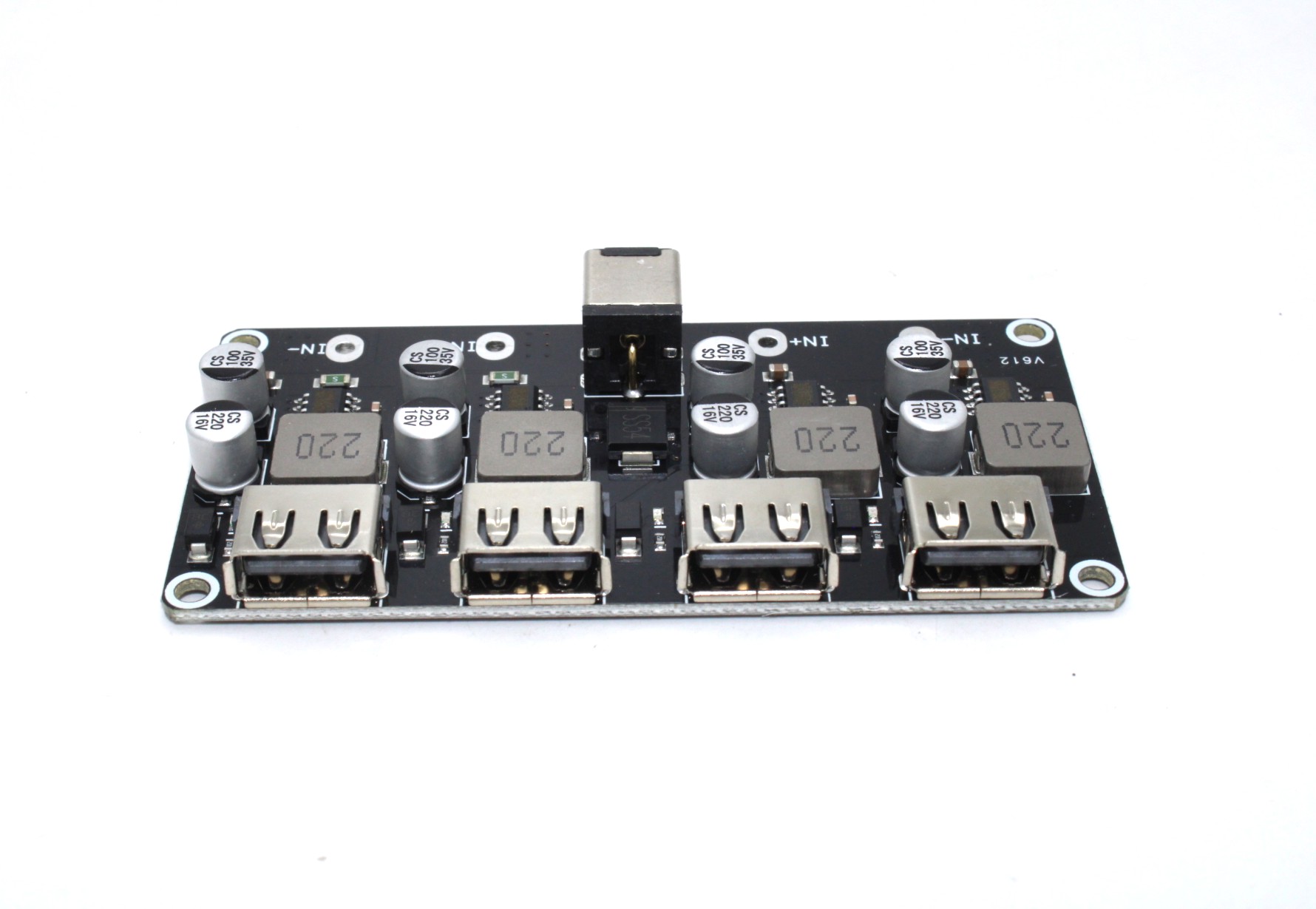

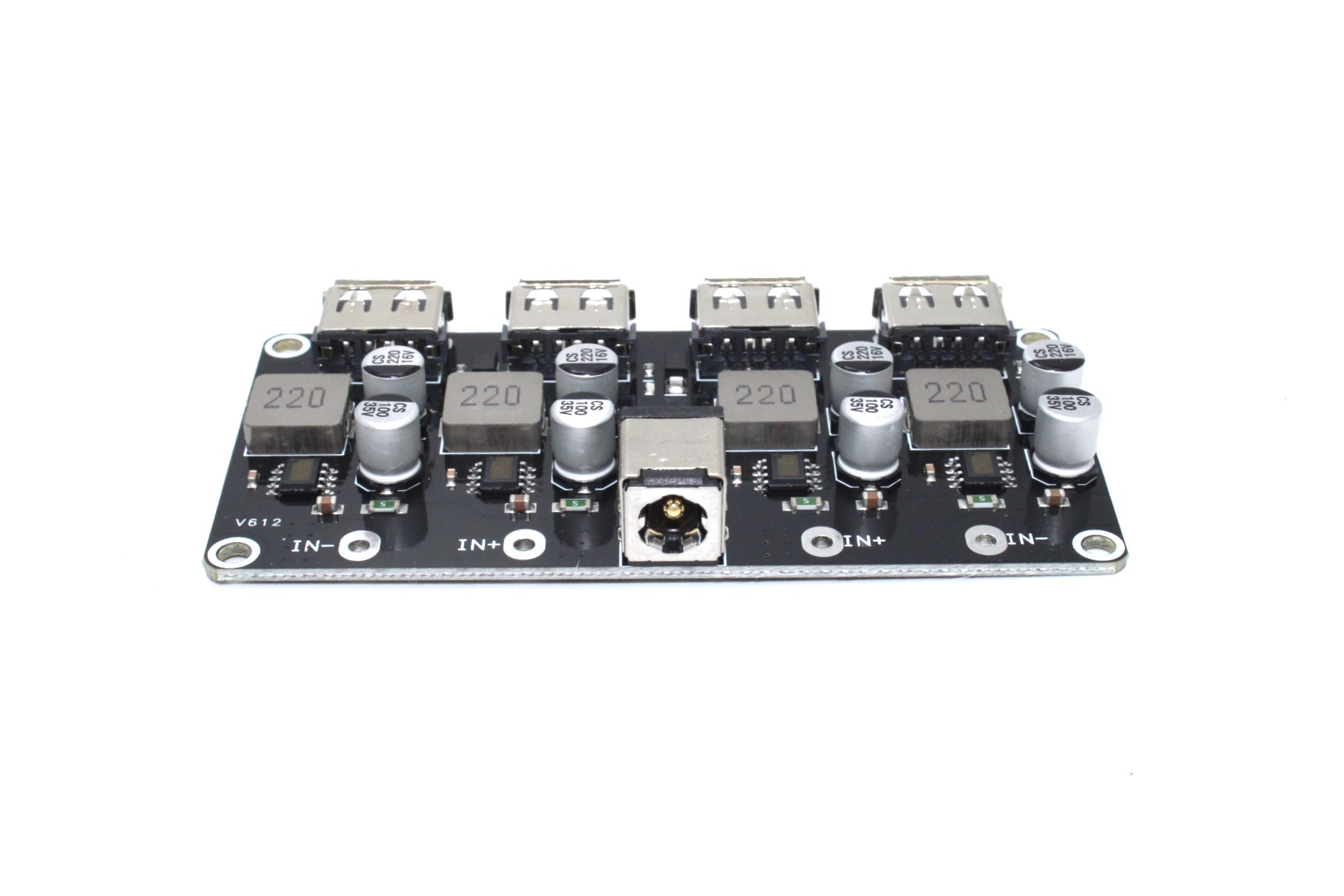

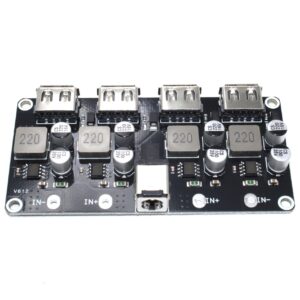

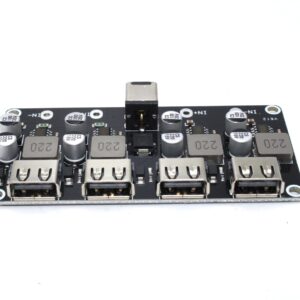

This 4-Channel USB QC3.0/QC2.0 DC-DC Buck Converter Charging Step-Down Module is designed to efficiently convert input voltages from 6V to 32V to 9V, 12V, or 24V for fast charging applications. Known for their high efficiency, DC-DC buck converters minimize power loss during voltage conversion, ensuring optimal performance. With support for quick charging protocols, this module is perfect for powering fast chargers and providing reliable, rapid charging solutions.
Applications:
Suitable for DIY projects, portable chargers, automotive applications, or any scenario where efficient and fast USB charging is required.
Note:Â The actual product may vary in slight variation with the image shown depending upon quantity availability.Â
Features:
- 4 channels, allowing you to simultaneously charge 4 USB devices.
- Supports Quick Charge 3.0 (QC3.0) and Quick Charge 2.0 (QC2.0) standards.
- Accepts input voltages in the range of 6-32V. This flexibility allows the module to be used in various applications with different power sources, such as automotive systems (12V), power adapters, or other DC power supplies.
- Support multiple fast-charging protocols
- Support DCP protocol, BC1.2, Apple, Samsung protocol
- Support Huawei Fast Charge Protocol FCP/SCP
- Support Huawei Fast Charge Protocol AFC
- Support Spreadtrum Fast Charge Protocol SFCP
- Support Qualcomm QC2.0 and 3.0
Specification
| Input Voltage (V) | 6~32V |
|---|---|
| Product Type | 6-32V DC-DC Buck Converter Step Down to Fast Quick Charger Circuit Board |
| P3D Material | Metal + Plastic |
| Output Voltage(V) | 5V, automatically adjust between 3-12V after triggering fast charge |
| Output Power (W) | up to 24W (5V/3.4A, 9V/2.5A, 12V/2A, etc.) |
| Conversion efficiency | 90%-97% |
| Product Dimensions (mm) | 89 x 44 x 11 |
Package Includes:
1 x 4 CHANNEL USB QC3.0 QC2.0 DC-DC Buck Converter Charging Step Down Module 6-32V 9V 12V 24V to Fast Quick Charger Circuit Board
