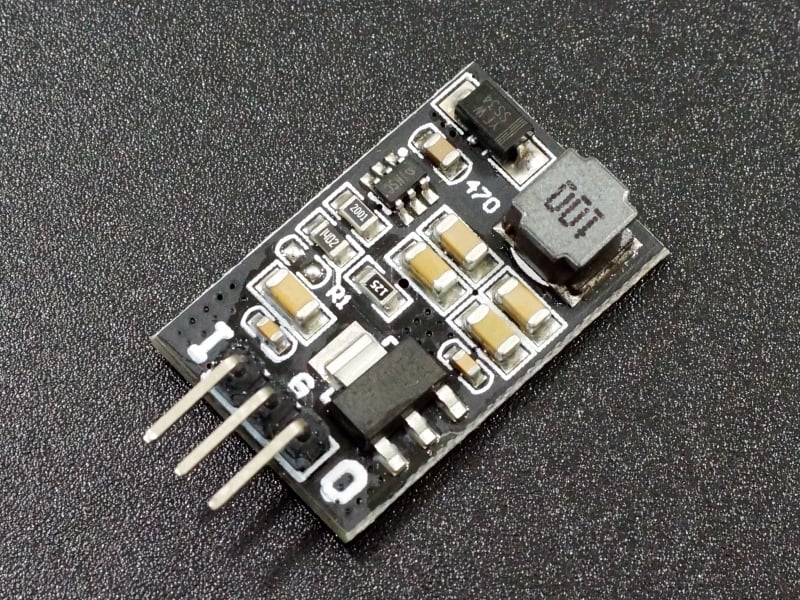

5V DD38LOSA DC-DC, Converter, Voltage,Stabilization, Device,Input DC6-40V, 5W, Power Supply, Module, （With PIN and, AMS1117

5V DD38LOSA DC-DC, Converter, Voltage, Stabilization, Device,Input DC6-40V, 5W, Power Supply, Module, （With PIN and, AMS1117

These modules possess a unique characteristic of integrating both a DC-DC converter, capable of accommodating a wide range of input voltages, and an LDO linear regulator, ensuring a steady output voltage.

Features:

1. 5V Output
2. 8 to 40V Input
3. 700mA continuous current independent of input voltage
4. Up to 1A intermittent current
5. Short circuit and thermal protection built-in
6. Small package compatible with standard 3 pin TO-220 regulator pinout

Specification:

1. VIN Input Voltage Range 8 to 40V
2. IO Maximum Output Current 700mA
3. IPEAK Peak Surge Current 1000mA
4. VO Output Voltage 5V
5. IO Max Output Current (Continuous) 700mA
6. Iq Quiescent current 5mA typical
7. Dimensions L x W x H (not including header) 25 x 16 x 5.8mm

Package Includes:

1 x 5V DD38LOSA DC-DC Converter,5W Power Supply Module
