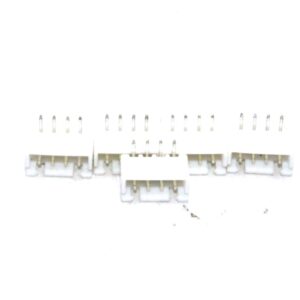

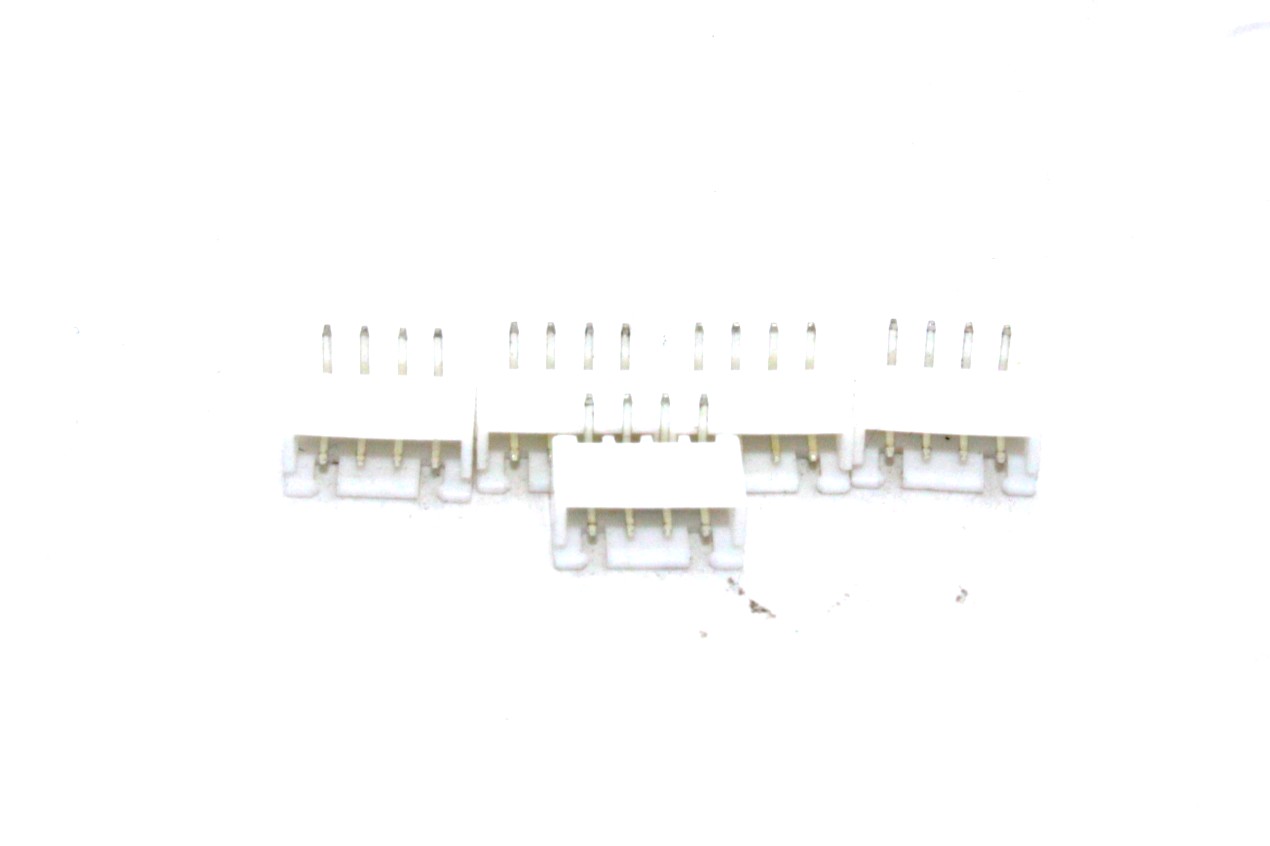

4 Pin JST Cable Connector Male – 90 Degree
This is JST 4 Pin Connector Plug 90 Degree. These are often referred to as “JST” or “BEC” Connectors and are commonly used for battery and motor connections on small electric planes.
Features
Current Rating: 3A
Voltage Rating: 250V
Pitch: 2.54mm
Connector Type: 4 Pin JST-XH Male Right Angle 2.54mm Pitch Connector
width: 12mm, Height: 7mm
Specification:
| Model No. | XH2.54mm 4P |
|---|---|
| Product Type | Bend Pin Header Connector |
| Pitch (mm) | 2.54mm |
| Operating Current (A): | 3 A |
| Operating Voltage (V) | 250V |
| Color: | White |
| Poles | 4 pins |
| Wire Length(mm) | 0.2mm² (24AWG) |
| Applicable printed board thickness | 0.8 ~1.6mm |
| Operating Temperature (°C) | -25°C ~+85°C |
| Insulation Resistance (MΩ) | ≥1000M ohm |
Package Includes
5 x 4 Pin JST Cable Connector Male – 90 Degree
