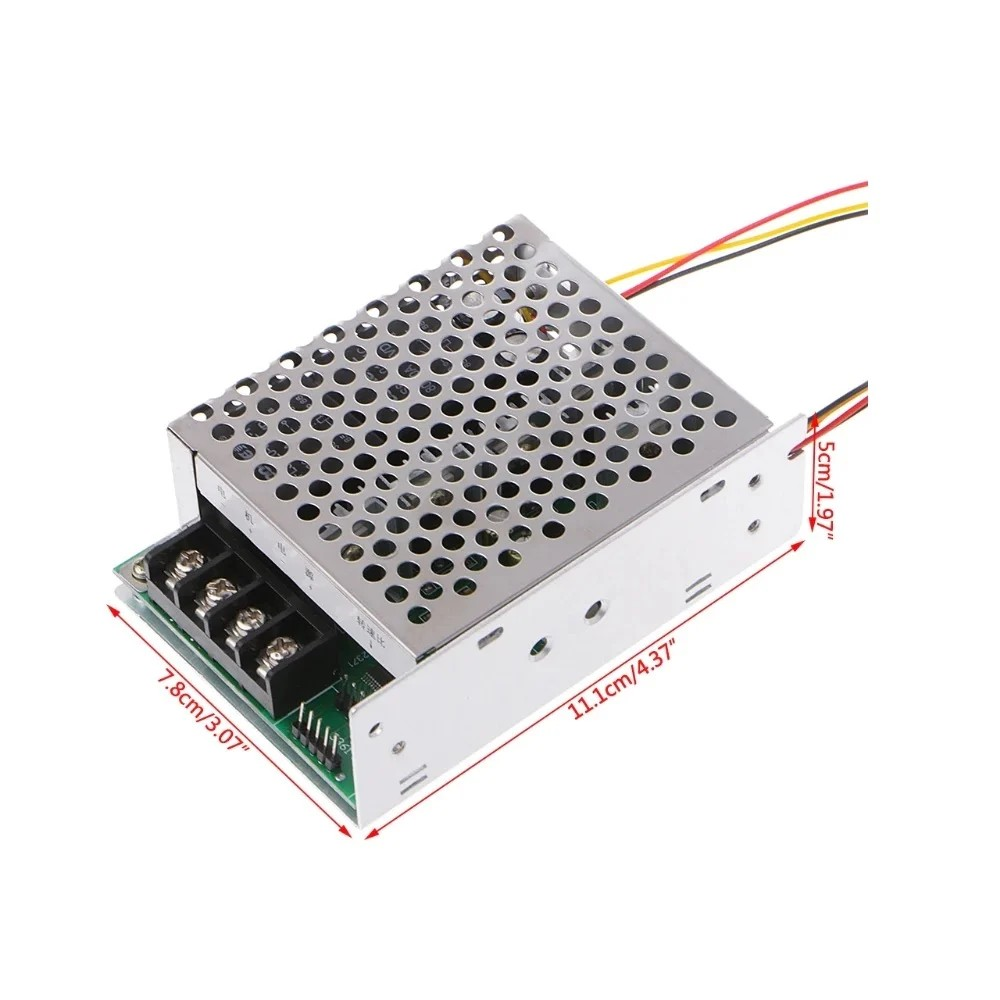

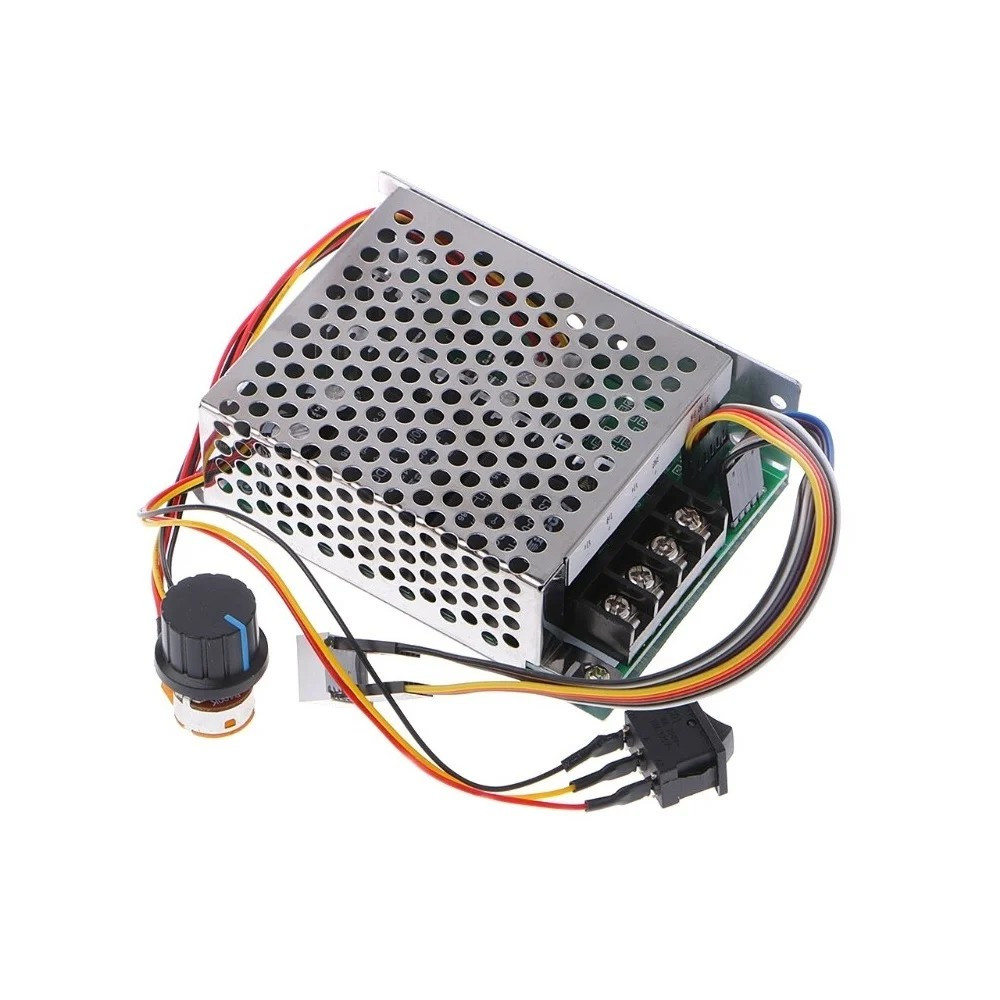

12V 24V 36V 40A PWM DC Motor Speed Controller Forward Reverse Adjustable Knob Switch with Case

The 12V 24V 36V 40A PWM DC Motor Speed Controller is a high-power motor controller designed for efficient control of DC motors with adjustable speed and reversible rotation. This versatile controller supports 12V, 24V, and 36V systems and can handle up to 40A of current.

Features:

• PWM Control: Ensures smooth and efficient motor speed regulation while minimizing power loss.
• Forward/Reverse Control: A toggle rocker switch allows easy switching between forward and reverse motor directions.
• Adjustable Voltage: The built-in knob allows for convenient adjustment of output voltage to control motor speed and performance.

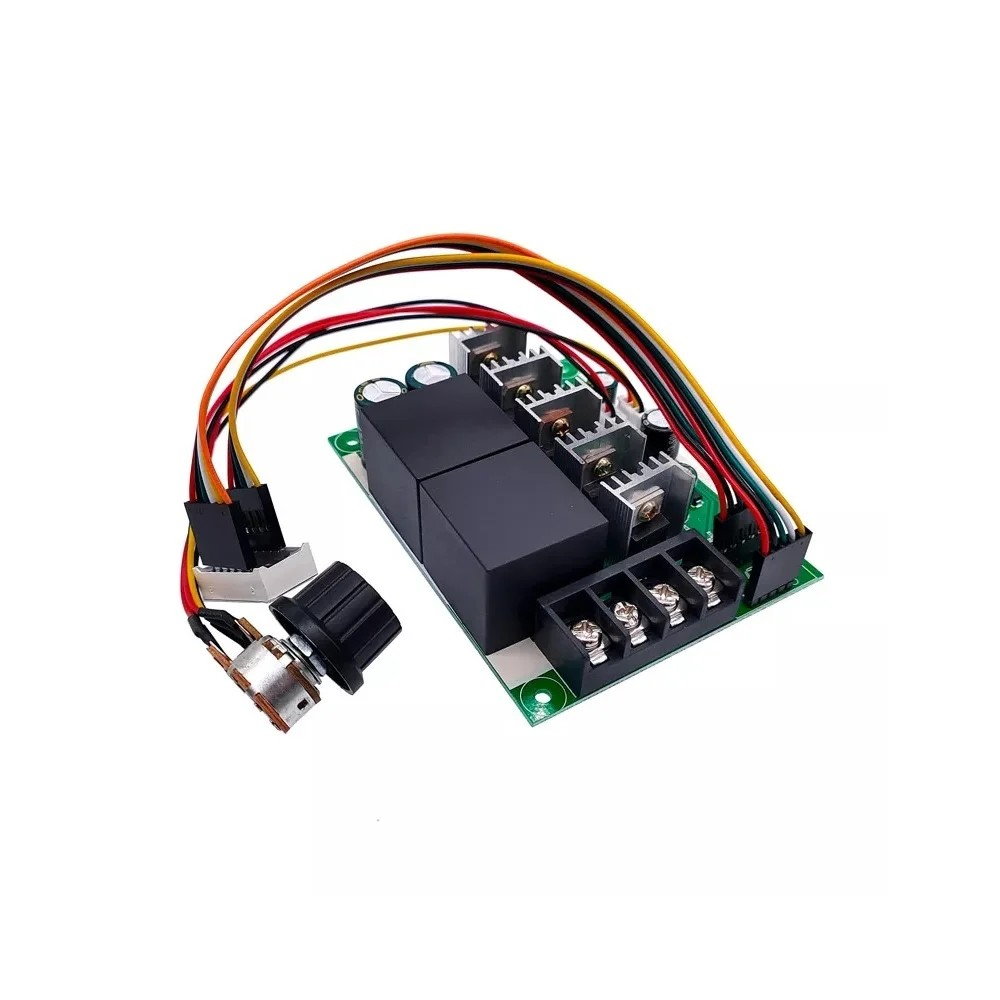

• High Power Relays: Automotive-grade relays ensure reliable operation under heavy loads.

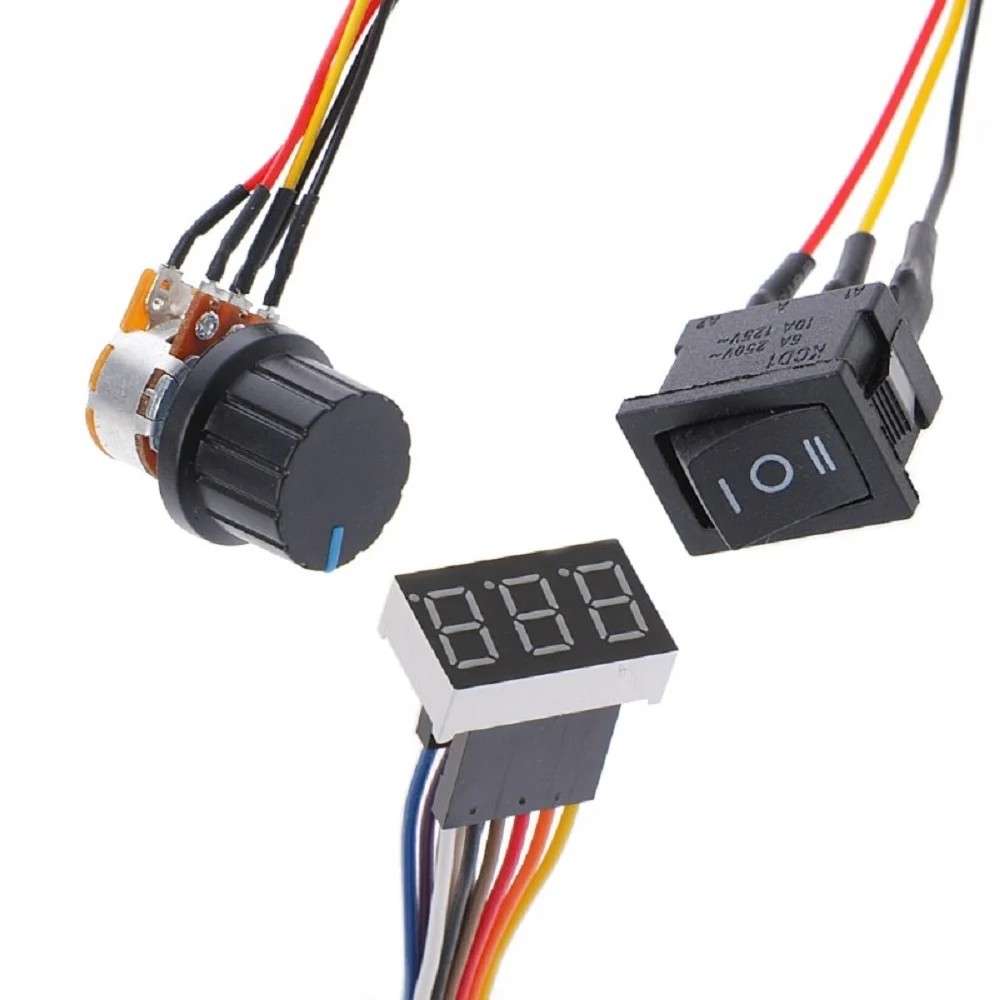

• LED Display: A 3-digit seven-segment display provides real-time monitoring of the selected voltage.

This motor controller is ideal for applications such as robotics, electric vehicles, DIY projects, and more, offering full control over motor speed, direction, and voltage with added protection against overloads and faults.

Features:

1. Input voltage: DC12 to 36V (equal to the rated voltage of the motor)
2. Output voltage: linear underload
3. Maximum current: 50A
4. Continuous current: 40A
5. Speed regulation type: current regulation
6. Speed regulation mode: potentiometer (linear)
7. Support motor: DC brush motor
8. Rotation:  Toggle Forward and reverse
9. Speed range: 0——100%
10. Wiring type: terminal Knob
11. Potentiometer: 100K (with switch)
12. Wiring type: fence terminal block
13. Product weight: 173g

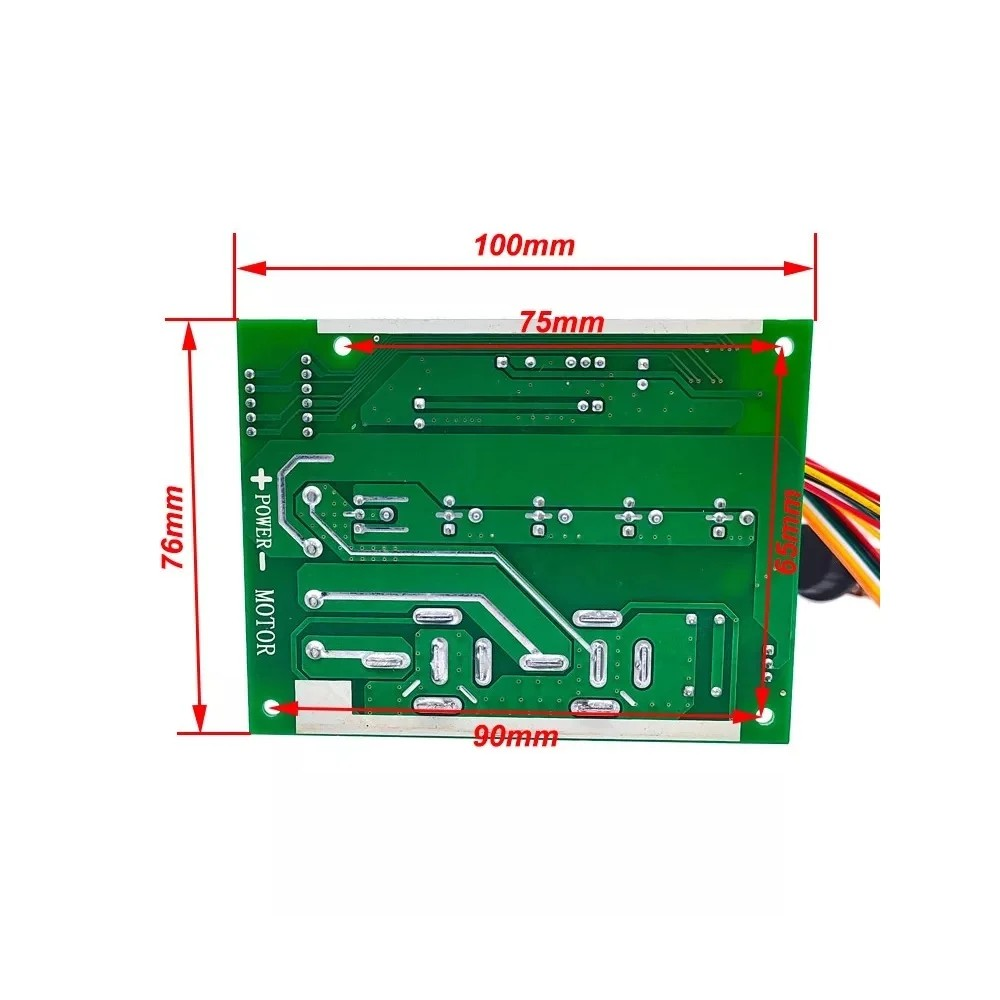

14. Board Dimensions (L x W x H) mm: 100 x 76 x 28

Specifications :

Package Includes:

1 x PWM DC Motor Speed Controller Forward Reverse Adjustable Knob Switch with Case
